P/N: 24EP43 Key Specs
Item

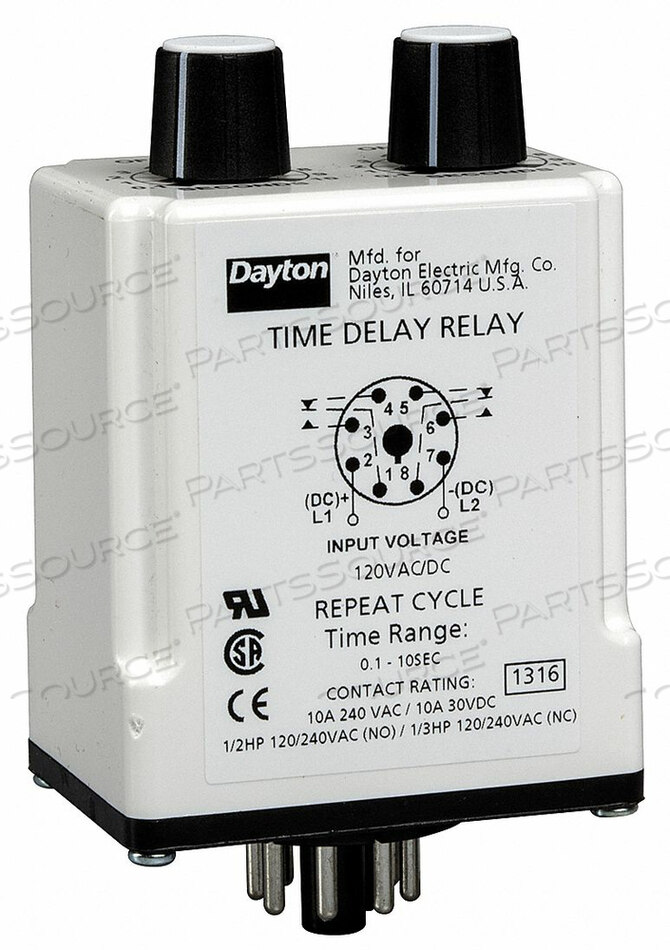

H7814 TIME DELAY RELAY 240VAC 10A DPDT 9 SEC.
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
24EP43
Condition
New OEM Original
Returnable
No
AC Contact Rating — Relay
10A @ 240V
Adjustment Method — Timer
Potentiometer
Base Type — Plug In Relay
Octal
Body Depth — Relay
1.7 in
Body Height — Relay
2.9 in
Body Width — Relay
2.4 in
Coil Volts
240V AC
Contact Form — Relay
DPDT
Contact Material
Silver Nickel
DC Contact Rating — Relay
10A @ 30V
Electrical Connection
Socket
Function — Timing Relay
Repeat Cycle (On First)
Hz — Electrical
50 Hz, 60 Hz
Item — Relay
Single Function Timing Relay
Max Time Setting — Timer
15 min
Min Time Setting — Timer
9 sec
Mounting — Relay
Plug In
Number of Pins — Relay
8
Overall Height — Relay
3.1 in
Power Consumption — Relay
2 VA
Socket
1EGP3, 1EGP5, 5X852
Standards
CE, CSA, UR
Status Indicator
None
