P/N: 24C181 Key Specs
Item

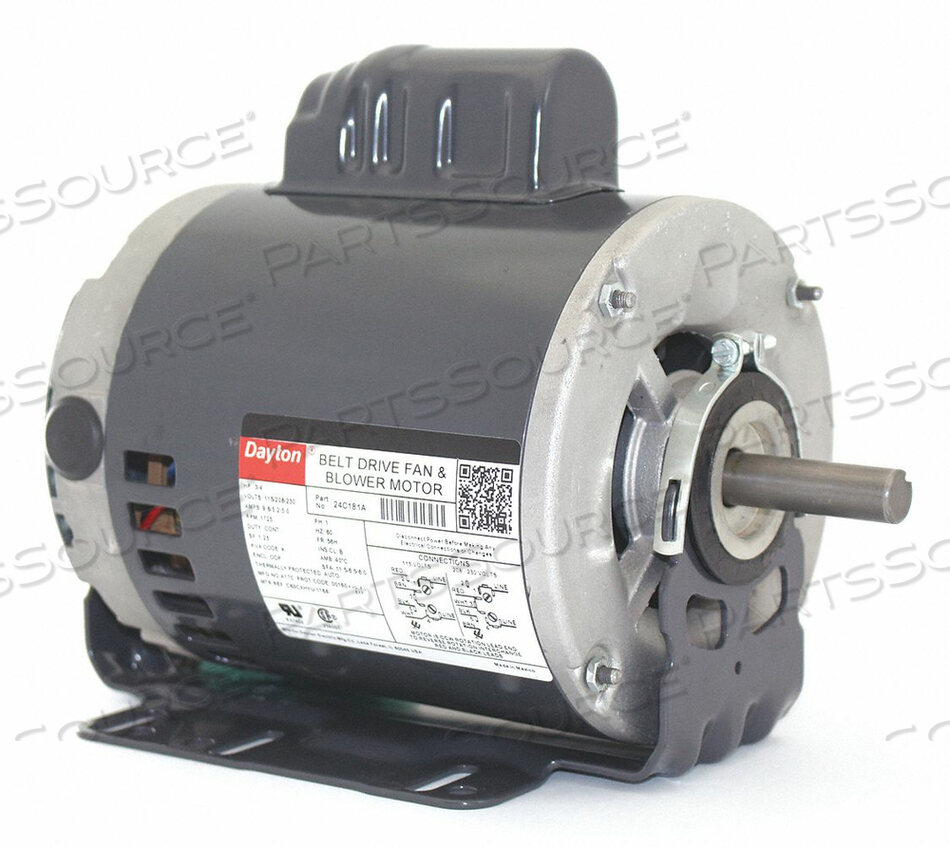

BELT DRIVE MTR CS ODP 3/4 HP 1725 RPM
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
24C181
Condition
New OEM Original
Returnable
No
Body Diameter
6-1/2 in
Duty
Continuous
Frame
56H
Full Load Amps
9.8/5.2-5
HP
3/4 hp
Hz
60
Ins. Class
B
Length Less Shaft
9-7/8 in
Manufacturers Warranty Length
1 yr
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Capacitor-Start
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Cradle Base
Motor Service Factor
1.25
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Belt Drive Fan/Blower
Motor Thermal Protection
Auto
Nameplate RPM
1725
Number of Speeds
1
Overall Length
11-13/16 in
Phase
1
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
CE, CSA Certified, UL Recognized
Voltage
115/208-230
