P/N: 216NU5 Key Specs
Item

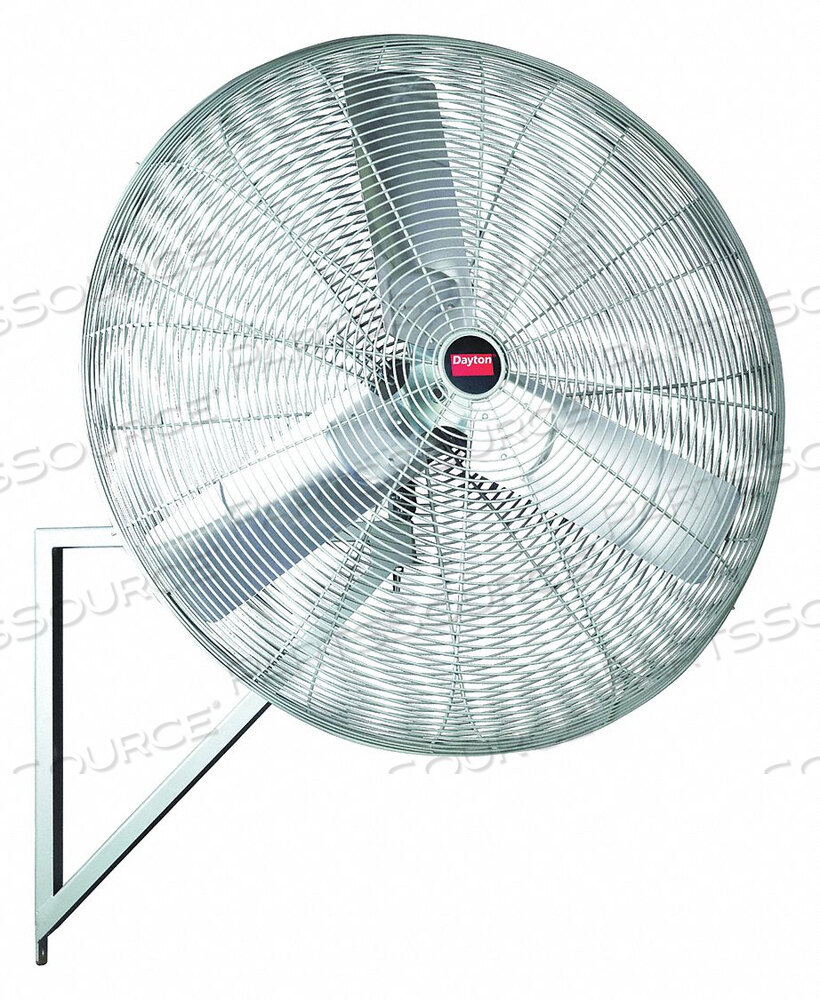

STANDARD DUTY INDUSTRIAL FAN PHASE 1
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
216NU5
Condition
New OEM Original
Returnable
No
Air Flow
9,450 cfm
Air Velocity @ 10 Ft.
1250 fpm
Air Velocity @ 20 Ft.
850 fpm
Air Velocity @ 40 Ft.
250 fpm
Amps
1.8
Assembly Required
No
Bearing Type
Ball
Blade Diameter
30 in
Blade Material
Aluminum
Color
Gray
Depth
24 1/4 in
Environmental Applications
Industrial
Fan Mounting Location
Ceiling, Post, Wall
Features
Wall Bracket, Conduit Box
Guard Material
Steel
Height
33 in
Height Adjustment
Fixed Height
Hz
60
Includes
Air Circulator, Mounting Bracket
Max. Ambient Temp.
104 Degrees F
Motor Design
Permanent Split Capacitor
Motor Enclosure
Totally Enclosed Air-Over
Motor HP
1/2 hp
Motor Insulation
Class B
NEMA Plug Configuration
Hardwired
Number of Blades
3
Number of Speeds
1
Oscillation
Non-Oscillating
Phase
1
Shaft Dia.
1/2 in
Sound Level
77dBA
Standards
UL, cUL, OSHA
Thermal Protection
Automatic Reset
Voltage
277VAC
Watts
450
Wheeled Base
Stationary
Width
33 in
Wire Guard Finish
Powder Coated
