P/N: 215TTFBD6004 Key Specs
Item

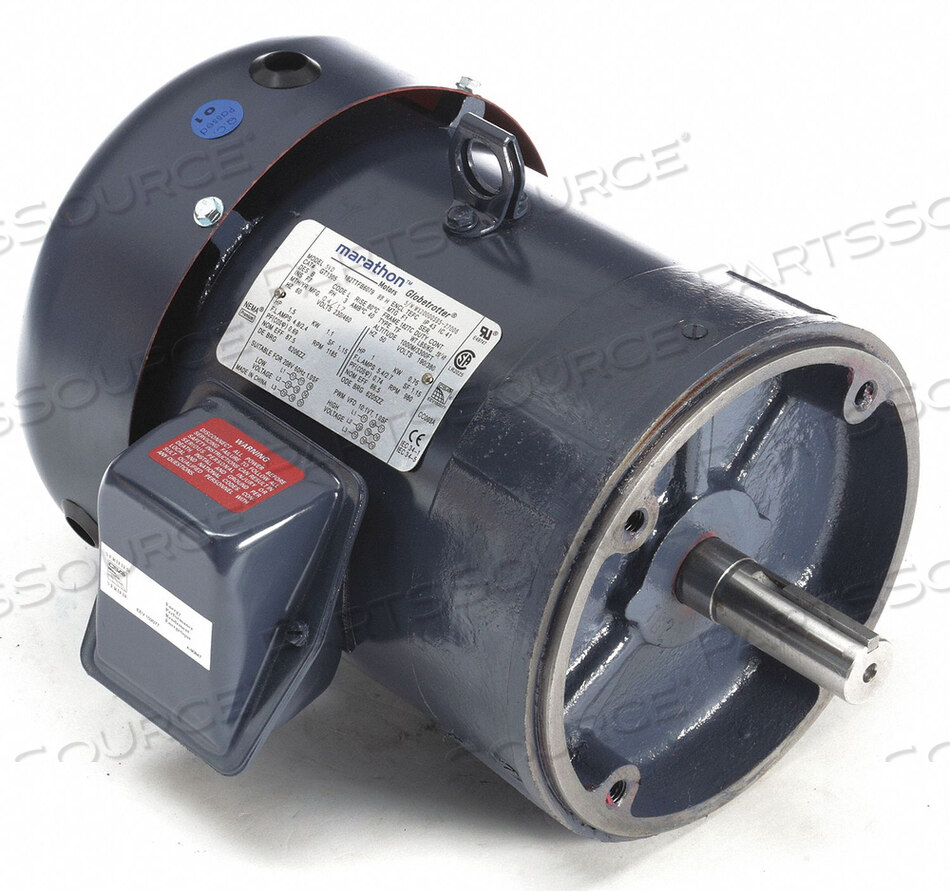

MOTOR 3-PH TEFC 10 HP 3540 RPM 230/460V
OEM
Marathon Motors
OEM #
215TTFBD6004
Condition
New OEM Original
Returnable
No
CC Number
CC003A
Duty
Continuous
Frame
215TC
Full Load Amps
22.8/11.4
HP
10
Hz
60/50
Ins. Class
F
Inverter Rated
No
Length Less Shaft
17-5/8 in
Manufacturers Warranty Length
1 yr
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Face
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
3540
Nominal Efficiency
92.4 %
Number of Speeds
1
Overall Length
21 in
Phase
3
Shaft Diameter
1-3/8 in
Shaft Length
3-3/8 in
Standards
UL (E49747), CSA (LR2025), CE
Voltage
230/460
