P/N: 1MBE7 Key Specs
Item

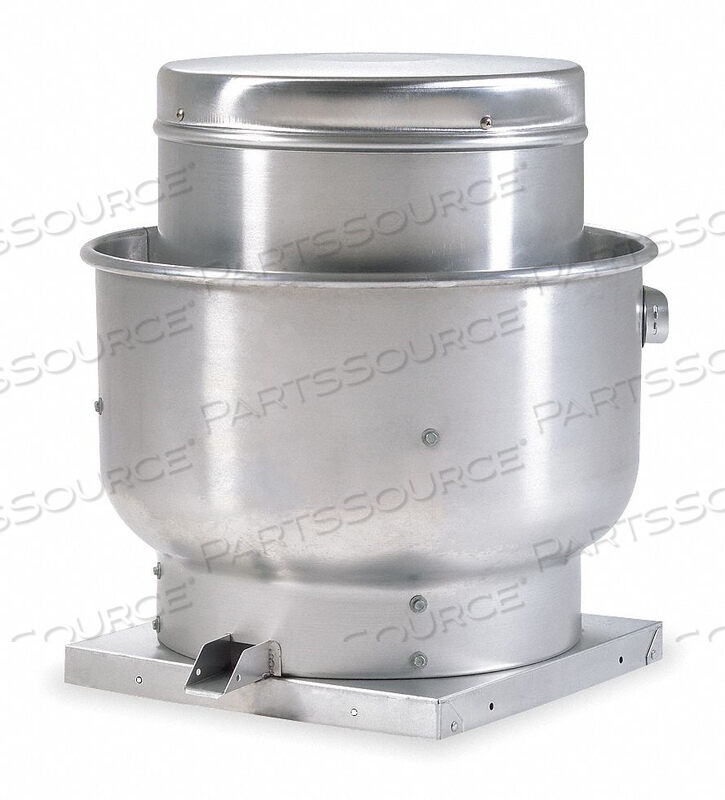

ALUMINUM 25 DIA 30 H ROOF FAN W.MOTOR
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
1MBE7
Condition
New OEM Original
Returnable
No
Adj. 12 3/8H Roof Curb Stock No.
2ZV82
Adj. 6 3/8H Roof Curb Stock No.
4C453
Adj. UL 762 Kitchen Roof Curb Stock No.
4HX61
Assembled/Unassembled
Assembled
Base Height
1 3/4 in
Base Size — Roof Ventilators
22 in x 22 in
Bearing Type
Sealed Pillow Block
CFM @ 0.000-In. SP
1549
CFM @ 0.125-In. SP
1505
CFM @ 0.250-In. SP
1459
CFM @ 0.375-In. SP
1406
CFM @ 0.500-In. SP
1350
CFM @ 0.625-In. SP
1293
CFM @ 0.750-In. SP
1234
CFM @ 0.875-In. SP
1171
CFM @ 1.000-In. SP
1106
CFM @ 1.250-In. SP
900
Dimension A
22 in
Dimension B
24 7/8 in
Dimension C
25 1/8 in
Dimension D
17 3/8 in
Drive Package With Motor Included
Yes
Drive Type — Roof Ventilators
Belt Drive
Duty Rating — Roof Ventilators
Standard
Fixed UL 762 Kitchen Roof Curb Stock No.
4HX55
Housing Material
Spun Aluminum
Hz
60 Hz
Includes
NEMA 1 Junction Box
Item — Roof Ventilators
Upblast Ventilator
Max. BHP
0.35 hp
Max. Inlet Temp.
300 Degrees
Max. Operating Amps
5.8/3.1-2.9
Motor HP — Roof Ventilators
1/3 hp
Mounting Location — Roof Ventilators
Roof
Number of Speeds
1
Overall Dia.
24 7/8 in
Overall Height
25 1/8 in
Phase
1
RPM
1820
Recommended 12 In. Fixed Curb Item No.
2RB76
Recommended 8 In. Fixed Curb Item No.
4HX39
Recommended Damper Size (In.)
15 x 15
Recommended Damper Stock No.
4HX65
Requires
Roof Curb for New Installation
Shaft Dia. Wheel End
3/4 in
Sones @ 0.125-In. SP @ 5 Ft.
13.7
Sones @ 0.250-In. SP @ 5 Ft.
13.4
Sones @ 0.500-In. SP @ 5 Ft.
12.4
Speed Controllable
No
Standards
AMCA Sound and Air, CSA Certified Motor, UL/cUL 762
Voltage — Roof Ventilators
115V AC/208V AC/230V AC
Wheel Dia.
11 1/4 in
Wheel Material
Aluminum
