P/N: 1EJR3BG Key Specs
Item

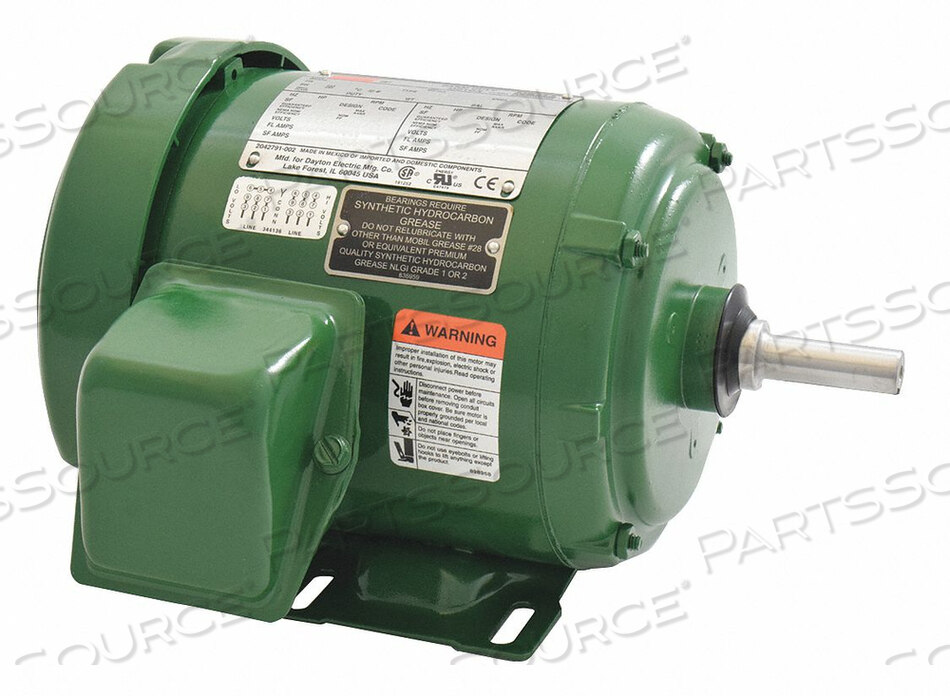

FARM DUTY MTR 3 PH TEFC 1/3 HP 1765 RPM
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
1EJR3BG
Condition
New OEM Original
Returnable
No
Duty
Continuous
Finish
Farm Duty Green
Frame
56
Full Load Amps
1.3-1.3/0.6
HP
1/3
Hz
60/50
Includes
Gasketed Conduit Box, Shaft Key, Shaft Slinger
Ins. Class
F
Item — Farm Duty Motors
General Purpose Farm Duty Motor
Length Less Shaft
9-13/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
Farm Duty
Motor Bearings
Ball
Motor Design
3-Phase
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Rigid Base
Motor Service Factor
1.25
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Sub Application
General Purpose Farm
Motor Thermal Protection
None
Nameplate RPM
1765
Nominal Efficiency
78.5 %
Overall Length
11-11/16 in
Phase
3
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
CSA Certified (258525), UL Recognized (E47479)
Voltage
208-230/460
Voltage Compatibility
208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
