P/N: 1AHD7 Key Specs
Item

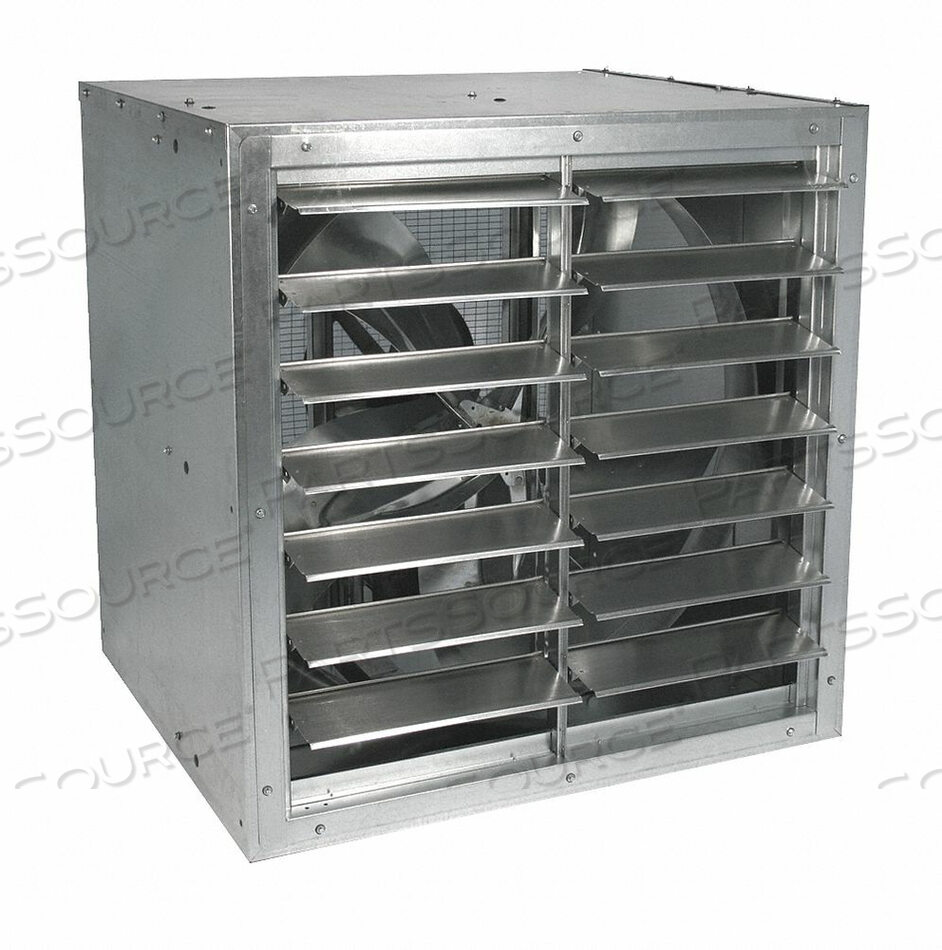

CABINET EXHAUST FAN 54 IN 208-230/460 V
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
1AHD7
Condition
New OEM Original
Returnable
No
Assembled/Unassembled
Assembled
Bearing Type
Regreasable Cast Pillow Block
Blade Diameter
54 in
CFM @ 0.000 in SP
35,881 cfm
CFM @ 0.125 in SP
34,002 cfm
CFM @ 0.250 in SP
31,574 cfm
CFM @ 0.375 in SP
26,743 cfm
CFM @ 0.500 in SP
22,462 cfm
Drive Package With Motor Included
Yes
Drive Type
Belt
Exhaust/Supply Fan Item
Exhaust Fan
Exhaust/Supply Fan Motor HP
5 hp
Fan RPM
518
Fan Voltage
208-230/460V AC
Frame Material
Galvanized Steel
Full Load Amps
13.6-12.8/6.4
Green Certification or Other Recognition
NEMA Premium(R) Rated
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Height
60 1/4 in
Housing Material
Galvanized Steel
Hz
60
Includes
(4) Wall-Mounting Angles
Max Ambient Temperature
104 Degrees F
Max BHP
5.53 hp
Max Depth
39-5/8 in
Max Inlet Temperature
104 Degrees F
Motor Enclosure
Open Dripproof
Motor Insulation
Class B
Motor RPM
1,725 RPM
Motor Type
3-Phase
Mounting Position
Horizontal
Number of Blades
5
Phase
3
Propeller Material
Fabricated Steel
Sones @ 0.125 in SP @ 5 feet
41
Standards
AMCA Air, CSA Certified Motor, Sound, UL/cUL 705
Width
60 1/4 in
