P/N: 19211115 Key Specs
Item

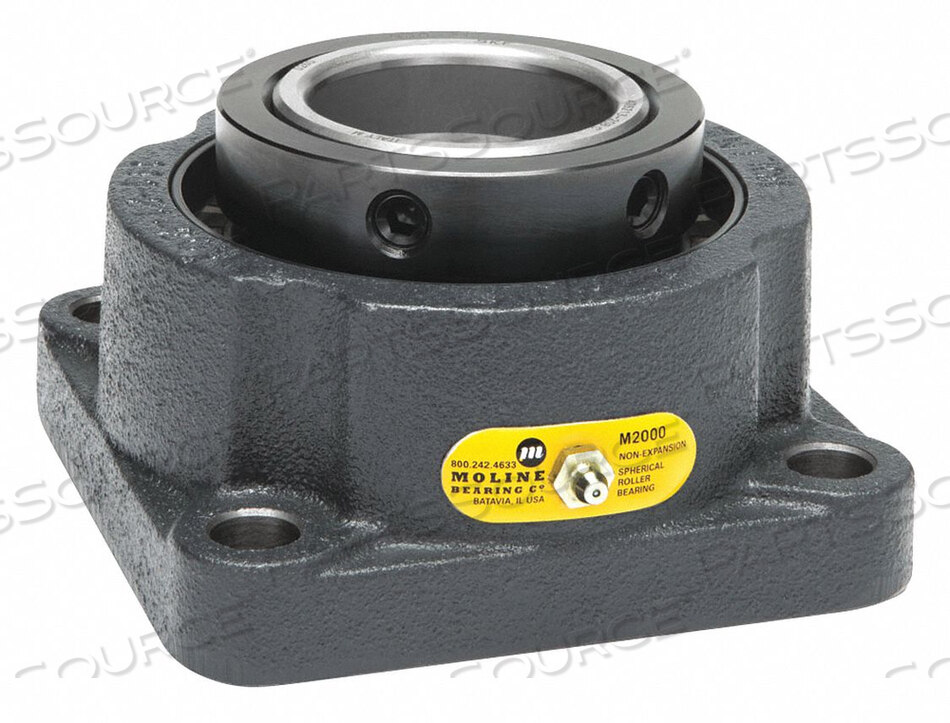

FLANGE MOUNT BEARING 5 1/4 IN H OVERALL
OEM
Moline Bearing
OEM #
19211115
Condition
New OEM Original
Returnable
No
Bearing Housing Material Type
Cast Iron
Bearing Insert Material
52100 Chrome Steel
Bearing Insert Type
Spherical Roller
Bearing Lubrication
Lithium Complex Grease
Bolt Hole Center-to-Center
4 1/16 in
Bolt Size
7/16 in
Bore Dia.
1 15/16 in
Dimension A
3 1/32 in
Dimension B
5 1/4 in
Dimension C
2 1/4 in
Dimension D
4 1/16 in
Dimension E
5 3/4 in
Dimension F
7/16 in
Dimension H
3/4 in
Dimension J
4 1/2 in
Dimension L
2 7/8 in
Dimension N
2 7/8 in
Dynamic Load Capacity
19,000 lb
Includes
Non-Expansion M2000 Spherical Roller Bearing
Mounted Bearing Item
4-Bolt Flange Bearing
Overall Height
5 1/4 in
Overall Length
3 1/32 in
Overall Width
5 1/4 in
Shaft Locking Type
Set Screw
Static Load Capacity
22,500 lb
Temp. Range
-40 Degrees to 250 Degrees F
