P/N: 184TTFCD6076 Key Specs
Item

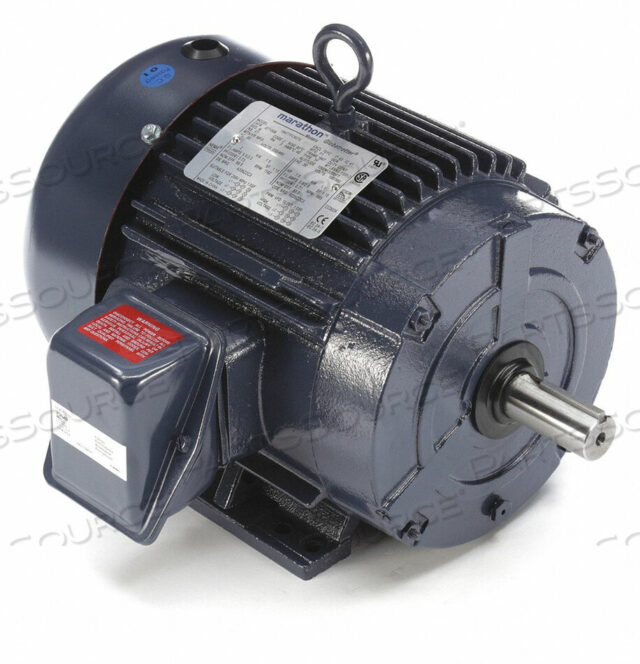

MOTOR 3-PH 2 HP 1180 RPM 230/460V
OEM
Marathon Motors
OEM #
184TTFCD6076
Condition
New OEM Original
Returnable
No
CC Number
CC003A
Duty
Continuous
Frame
184T
Full Load Amps
6/3
HP
2
Hz
60/50
Includes
Conduit Box
Ins. Class
F
Inverter Rated
Yes
Length Less Shaft
13-1/16 in
Manufacturers Warranty Length
1 yr
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1180
Nominal Efficiency
93.6 %
Number of Speeds
1
Overall Length
15-13/16 in
Phase
3
Shaft Diameter
1-1/8 in
Shaft Length
2-3/4 in
Standards
UL (E49747), CSA (LR2025), CE
Voltage
230/460
