P/N: 182THTY7736 Key Specs
Item

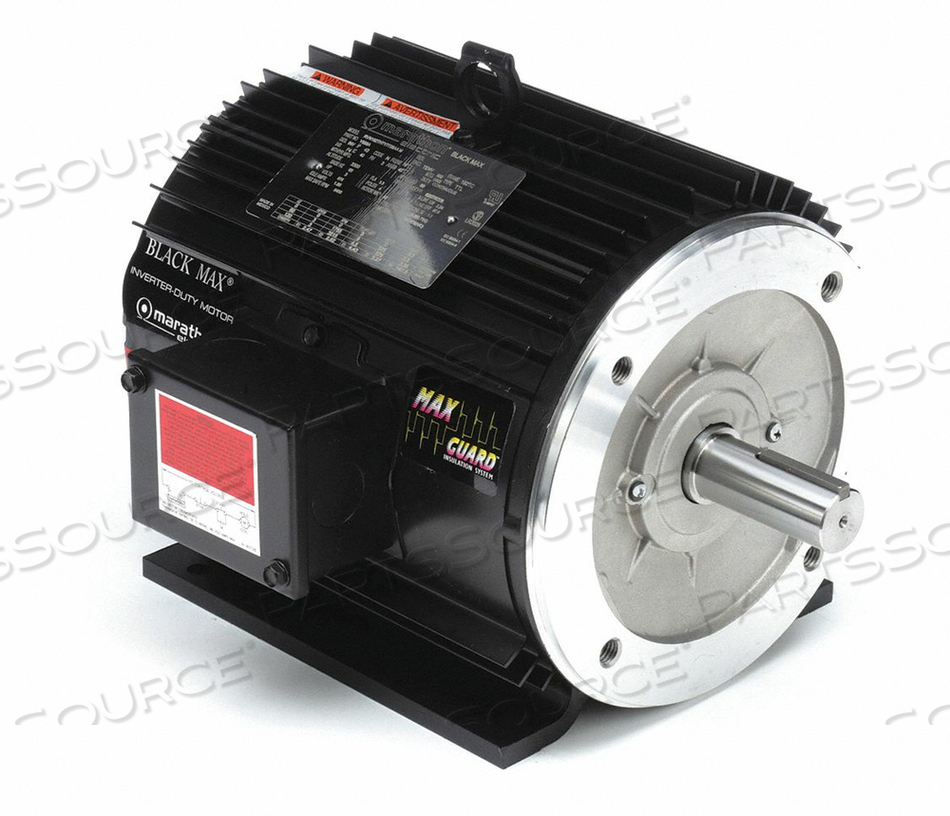

VECTOR MOTOR 3 HP 9.0 FT.-LB. BALL
OEM
Marathon Motors
OEM #
182THTY7736
Condition
New OEM Original
Returnable
No
Ambient Temperature
40 Degrees C
Base
Rigid
Duty
Continuous
Encoder Acceptable
Yes
Encoder Shaft
Yes
Finish
Powder Coat
Frame
182TC
Full Load Amps
3.3
HP
3
Hz
60
Ins. Class
F
Insulation Feature
Max Guard
Max Operating Frequency
120 Hz
Max Speed
5,400 RPM
Motor Application
Variable Speed
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
Energy Efficient
Motor Enclosure Design
Totally Enclosed Nonventilated
Motor Frame Material
Cast Aluminum
Motor Mounting Position
Horizontal
Motor Mounting Type
Face/Base
Motor Service Factor
1
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
NEMA Design
A
Nameplate RPM
1755
Nominal Efficiency
89.5 %
Overall Length
16-3/16 in
Phase
3
RPM Range
1701-1800
Shaft Diameter
1-1/8 in
Shaft Length
2-5/8 in
Speed Range
1000:1 CT
Standards
UL, CSA, CE
Torque
9 ft-lb
Voltage
575
Voltage Compatibility
575
