P/N: 166259 Key Specs
Item

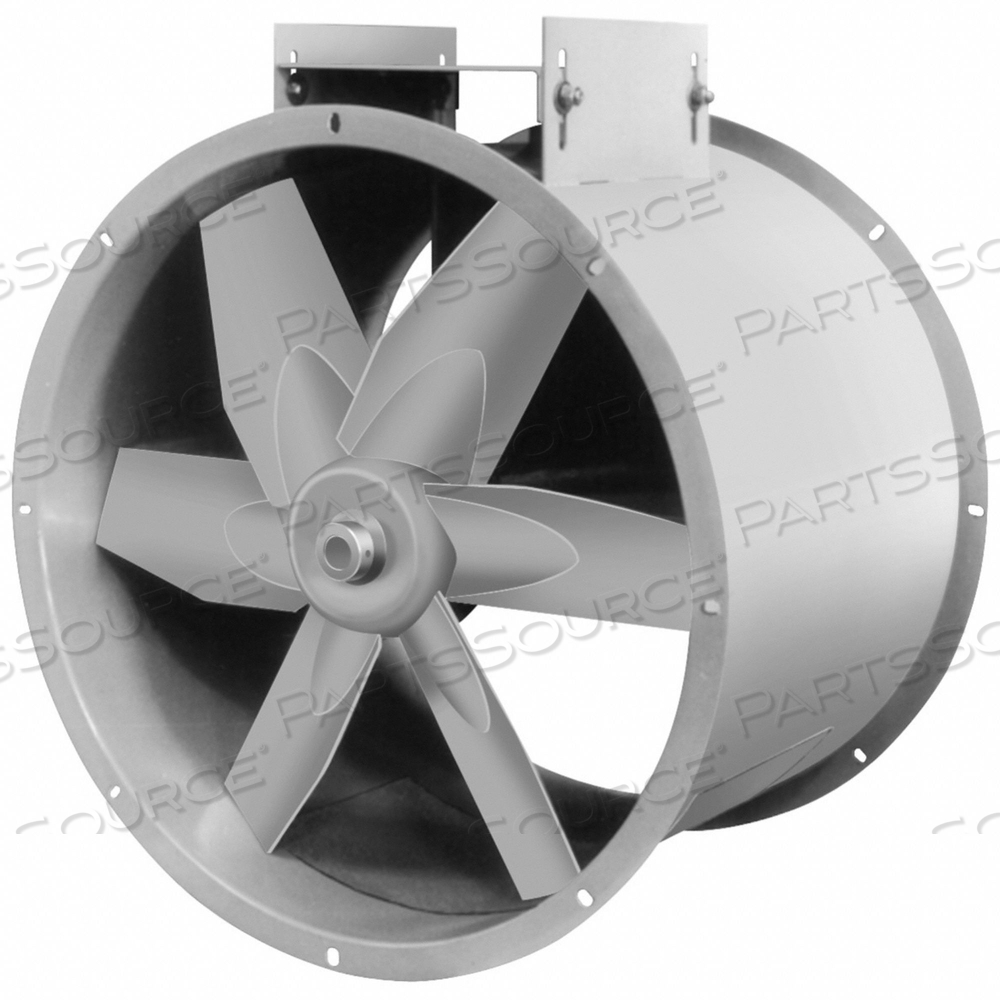

STEEL 33.6 DIA 24 L 33.6 H TUBEAXIAL FAN
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
166259
Condition
New OEM Original
Returnable
No
Blade Dia.
30 in
Blade Material
Steel
Bolt Circle Dia.
5/16 in
Dimension A
33 5/8 in
Dimension B
19 1/4 in
Dimension C
30 1/2 in
Dimension D
24 in
Dimension E
5/16 in
Drive Type
Belt-Drive
Height
33 5/8 in
Housing Dia. w/Mtg. Flange
33 5/8 in
Housing Dia. w/o Mtg. Flange
30 1/2 in
Housing Finish
Baked Enamel
Housing Material
Steel
Includes
Belt Guard and Fan Sheave
Inlet Dia.
30 1/2 in
Max. Ambient Temp.
200 Degrees F
Max. Depth
24 in
Max. Inlet Temp.
1000 Degrees F for 15 min, 500 Degrees F for 4 hr
Max. Motor Height
10 in
Mounting Position
Vertical/Horizontal
Number of Blades
6
Outlet Dia.
30 1/2 in
Shaft Dia.
1 3/16 in
Standards
AMCA
Width
33 5/8 in
