P/N: 145THTN8029 Key Specs
Item

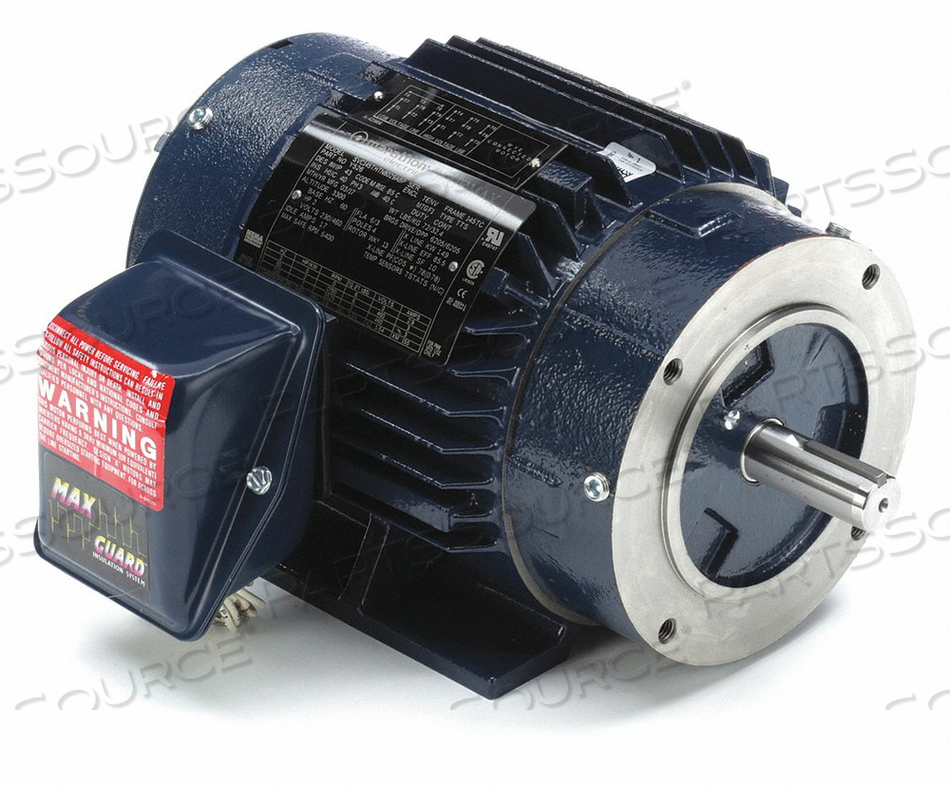

VECTOR MOTOR 3-PHASE 2HP 230/460V
OEM
Marathon Motors
OEM #
145THTN8029
Condition
New OEM Original
Returnable
No
Ambient Temperature
40 Degrees C
Base
Rigid
CC Number
CC003A
Duty
Continuous
Encoder Acceptable
Yes
Encoder Shaft
14-11/16 in
Finish
Blue Enamel
Frame
143TC
Full Load Amps
3/1.5
HP
2
Hz
60
Ins. Class
H
Insulation Feature
Class F
Max Operating Frequency
120 Hz
Max Speed
5400 rpm
Motor Application
Crane
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
Energy Efficient
Motor Enclosure Design
Totally Enclosed Nonventilated
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Mounting Type
Face/Base
Motor Service Factor
1
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
T-Stat
NEMA Design
B
Nameplate RPM
1756
Nominal Efficiency
87.5%
Overall Length
14-11/16 in
Phase
3
Shaft Diameter
14-11/16 in
Shaft Length
14-11/16 in
Speed Range
2000:1 CT
Standards
CE, CSA Certified (LR2025), UL Recognized (E49747)
Voltage
230/460
Warranty
3 yr
