P/N: 145THTN6060 Key Specs
Item

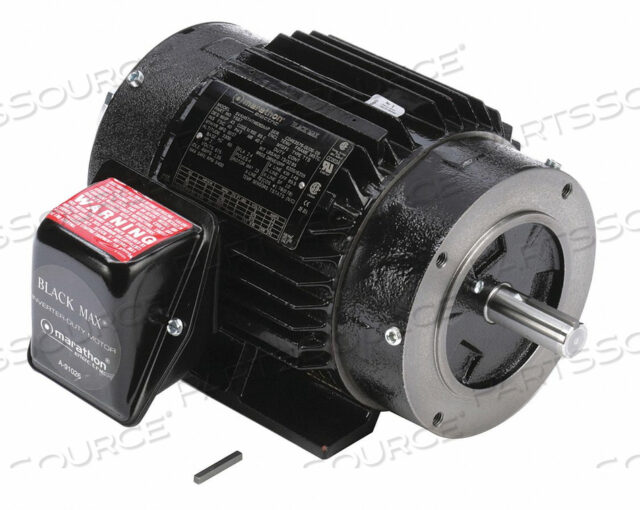

VECTOR MOTOR 2 HP 6 LB-FT 575V
OEM
Marathon Motors
OEM #
145THTN6060
Condition
New OEM Original
Returnable
No
Ambient Temperature
40 Degrees C
Base
Rigid
Duty
Continuous
Encoder Acceptable
Yes
Encoder Shaft
Yes
Finish
Black
Frame
145TC
Full Load Amps
2.4
HP
2
Hz
60
Ins. Class
F
Insulation Feature
MAX GUARD Class F
Max Operating Frequency
120 Hz
Max Speed
5,400 RPM
Motor Application
Crane
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
Energy Efficient
Motor Enclosure Design
Totally Enclosed Nonventilated
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Mounting Type
Face/Base
Motor Service Factor
1
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
T-Stat
NEMA Design
A
Nameplate RPM
1750
Nominal Efficiency
82.5 %
Overall Length
14-11/16 in
Phase
3
RPM Range
1701-1800
Shaft Diameter
7/8 in
Shaft Length
2-1/8 in
Speed Range
1000:1 CT
Standards
CE, CSA Certified (LR2025), UL Listed (E49747)
Torque
6 lb-ft
Voltage
575
Voltage Compatibility
575
