P/N: 142-AC-00-OO-100H Key Specs
Item

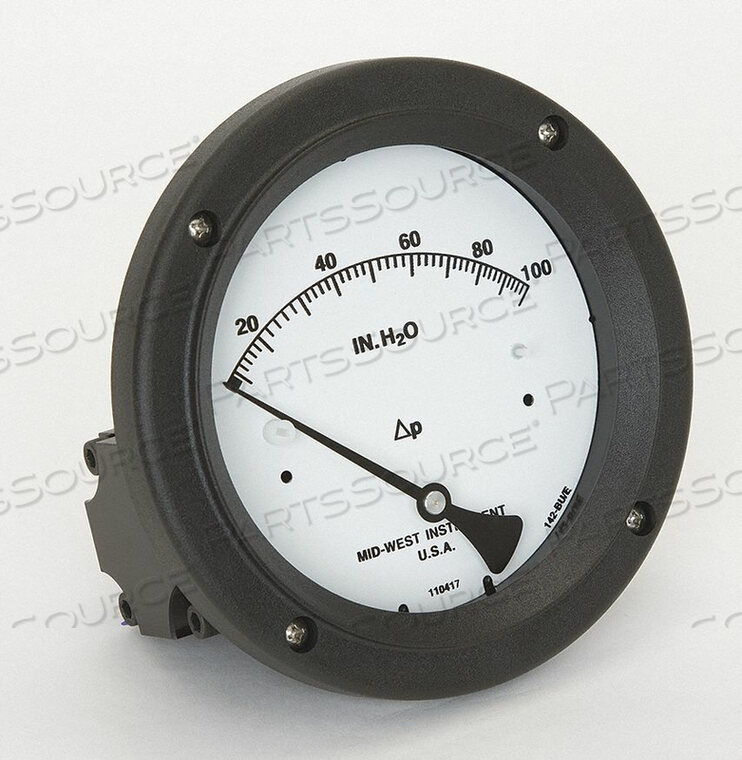

PRESSURE GAUGE 0 TO 100 IN H2O
OEM
Mid-West Instrument
OEM #
142-AC-00-OO-100H
Condition
New OEM Original
Returnable
No
Basic Gauge Case Material
Metal
Basic Gauge Wetted Parts
Buna-N
Body Material
Aluminum
Dial Material
Engineered Plastic
Diaphragm Material
Buna-N
Differential Gauge Connection Size
1/4 in
Differential Gauge Connection Type
FNPT
Differential Pressure Gauge Type
Differential Pressure Gauge
Differential Pressure Range Units
in wc
Differential Pressure Range Value
0 to 100
Gauge Accuracy
+/-3-2-3%
Gauge Connection Location
Back
Gauge Nominal Dial Size
4-1/2 in
Gauge Operating Temperature Range
-40 Degrees to 200 Degrees F
Gauge Primary Range Smallest Graduation
2
Includes
Instructions
Manufacturers Warranty Length
5 yr
Rated Total Pressure
3000 psi
Scale Type
Pressure
Seal Material
Buna-N
Standards
508 and 1203, ASME B1.201, ASME B40.1, CSA-C22.2 No. 14.25 and 30, EN-61010-1, NACE MR0175, NEMA Std. No. 250, SAE J514, UL Std. No. 50
