P/N: 13102516 Key Specs
Item

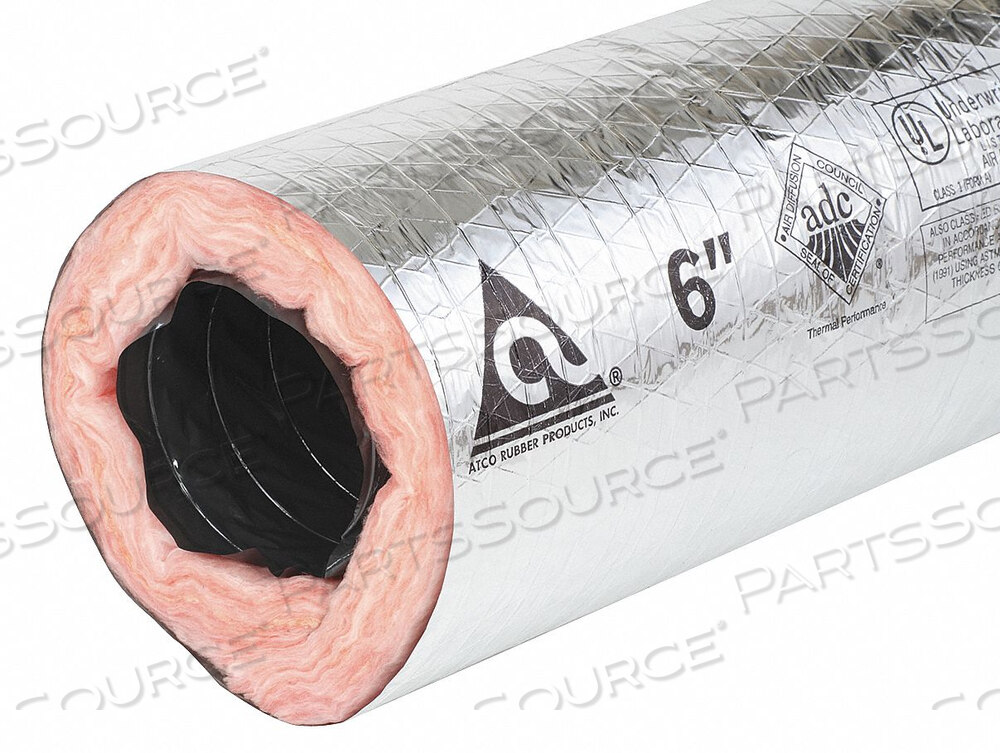

K7935 INSULATED FLEXIBLE DUCT 16 DIA.
OEM
Atco
OEM #
13102516
Condition
New OEM Original
Returnable
No
Compressed Size
38 in
Features
Double Ply Vapor Barrier with Tri Directional Reinforcements
Fire Rating
Flame Spread/Smoke Developed-Less Than 25/Less Than 50
Flexible Duct Inside Dia.
16 in
Flexible Duct Item
Insulated Flexible Duct
Flexible Duct Length
25 ft
Flexible Duct Wall Thickness
2 1/2 in
For Use With
Low Pressure Air Moving Systems
Insulation Value
R 8.0
Low Temp. Deg.
-20⁰F
Material
Polyester
Max. Air Flow
5,000 fpm
Max. Pressure
6 in WC
Max. Temp.
140⁰F
Standards
UL181, NFPA 90A and 90B, IMC, IRC, UMC 10-1 (ICC ES Report No. ESR-1268), HUD, Cities of Chicago, New York, San Francisco, County of Dade (Florida), California State Fire Marshall
UPC Number
31
Vapor Transmission
0.05
