P/N: 116392-00 Key Specs
Item

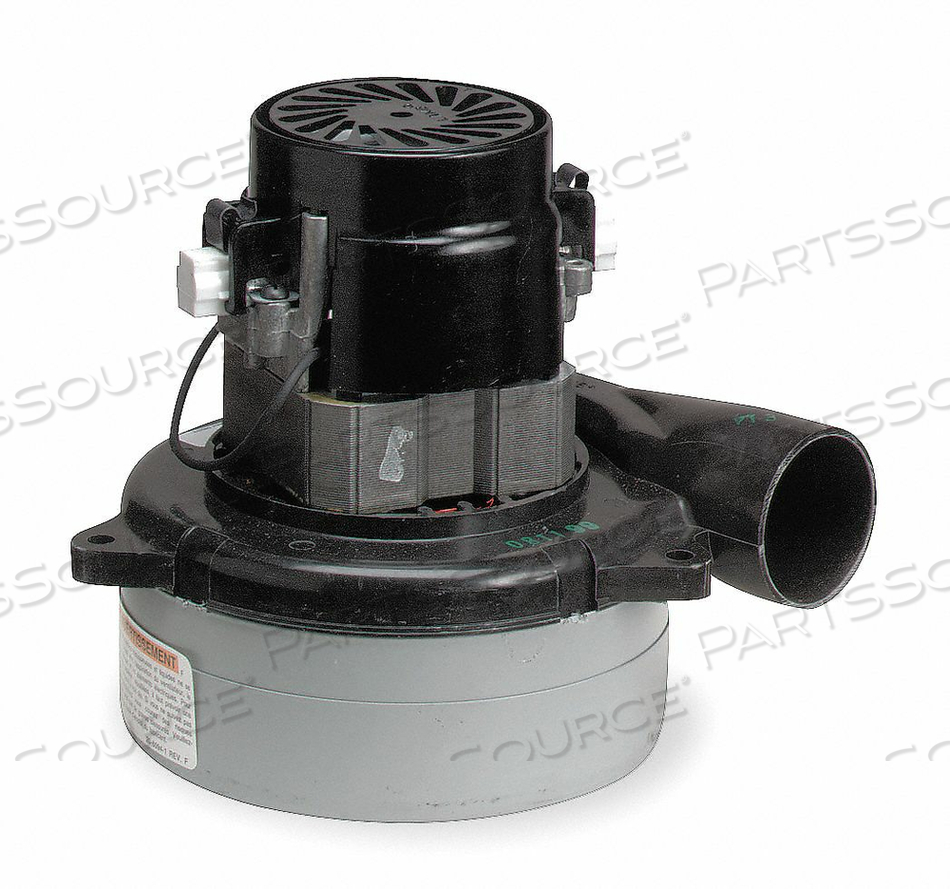

VACUUM MTR/BLWR TANGENTIAL 2 STGE 1 SPD
OEM
Ametek Lamb
OEM #
116392-00
Condition
New OEM Original
Returnable
No
Ambient Temperature
40 Degrees C
Average Life
500 hr.
Bearings
Ball
Blower Stages
2
Body Diameter
5.7 in
CFM @ 2 in Orifice
97
Discharge
Tangential Bypass
Duty
Intermittent
Hz
60/50
Ins. Class
A
Max Air Watts
248
Max Amps
8.6
Motor Design
Universal AC/DC
Motor Enclosure Design
Open
Motor Mounting Position
All Angle
Motor Mounting Type
Lug
Motor Thermal Protection
None
Motor/Blower Type
Bypass
Mounting Brackets
Thermoset
Number of Speeds
1
Overall Height
5.7 in
Phase
1
Replacement Brushes
2UV64
Standards
CSA Certified (LR31393), UL Recognized (E47185)
Vacuum (H2O Sealed)
81.8
Voltage
120
