P/N: 113.13.15.160.B Key Specs
Item

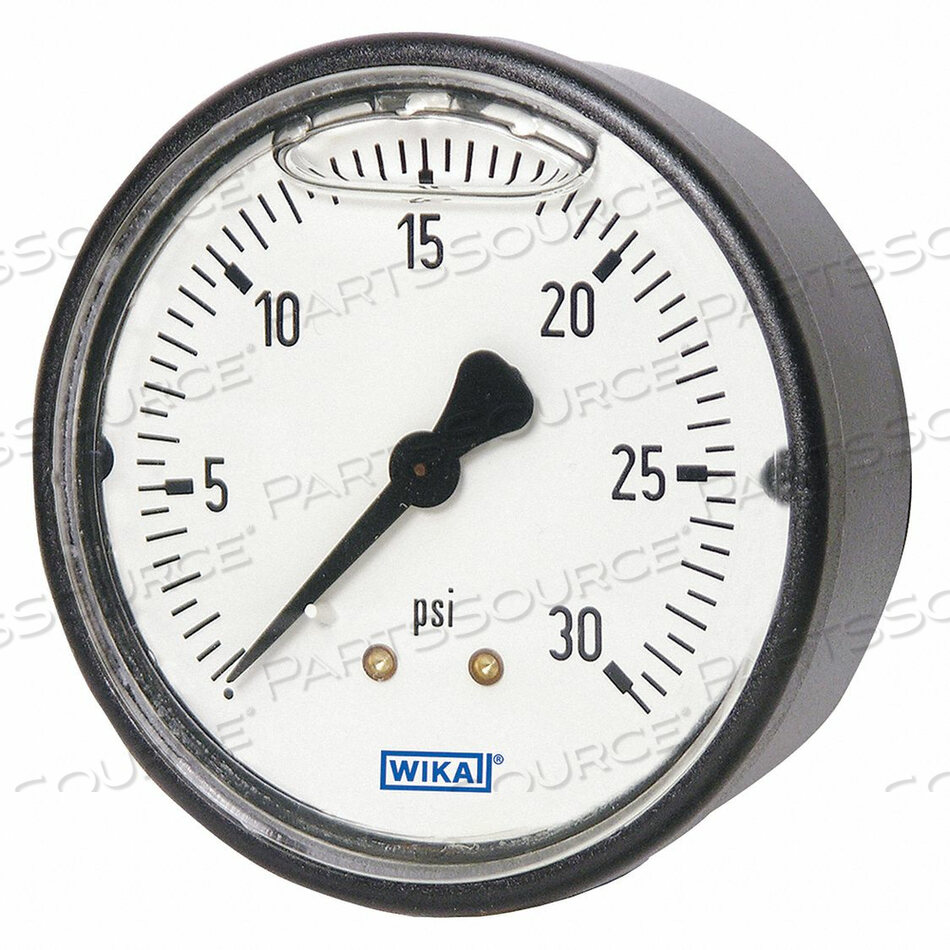

PRESSURE GAUGE 1-1/2 DIAL SIZE BACK
OEM
WIKA USA
OEM #
113.13.15.160.B
Condition
New OEM Original
Returnable
No
Basic Gauge Case Material
Plastic
Basic Gauge Lens Material
Plastic
Basic Gauge Sensor Material
Bronze
Basic Gauge Socket Material
Brass
Basic Gauge Wetted Parts
Brass / Bronze
Calibration Certificate Included
No
Characteristics
With Brass Internals
For Use With
Industrial Applications, Media Compatible with Copper Alloy, Brass
Gauge Accuracy
+/-3-2-3%
Gauge Application
General Purpose
Gauge Case Color
Black
Gauge Case Material
ABS Plastic
Gauge Connection Location
Center Back
Gauge Connection Size
1/8 in
Gauge Connection Type
MNPT
Gauge Filled With
Glycerin
Gauge Lens Material
Plastic
Gauge Nominal Dial Size
1-1/2 in
Gauge Panel Mountable
No
Gauge Primary Range Numbered Graduations
10
Gauge Primary Range Smallest Graduation
10
Gauge Primary Range Units
psi
Gauge Primary Range Values
0 to 160
Gauge Secondary Range Units
kPa
Gauge Secondary Range Values
0 to 1100
Gauge Sensor Material
Bronze
Gauge Socket Material
Brass
Gauge Special Options
Heavy Duty
Includes
Vent Plug
Liquid Filled
Yes
Manufacturers Warranty Length
1 yr
Operating Temperature Range
-4 Degrees to 140 Degrees F
Pressure and Vacuum Gauge Type
Pressure Gauge
Series
113.13
