P/N: 10E047 Key Specs
Item

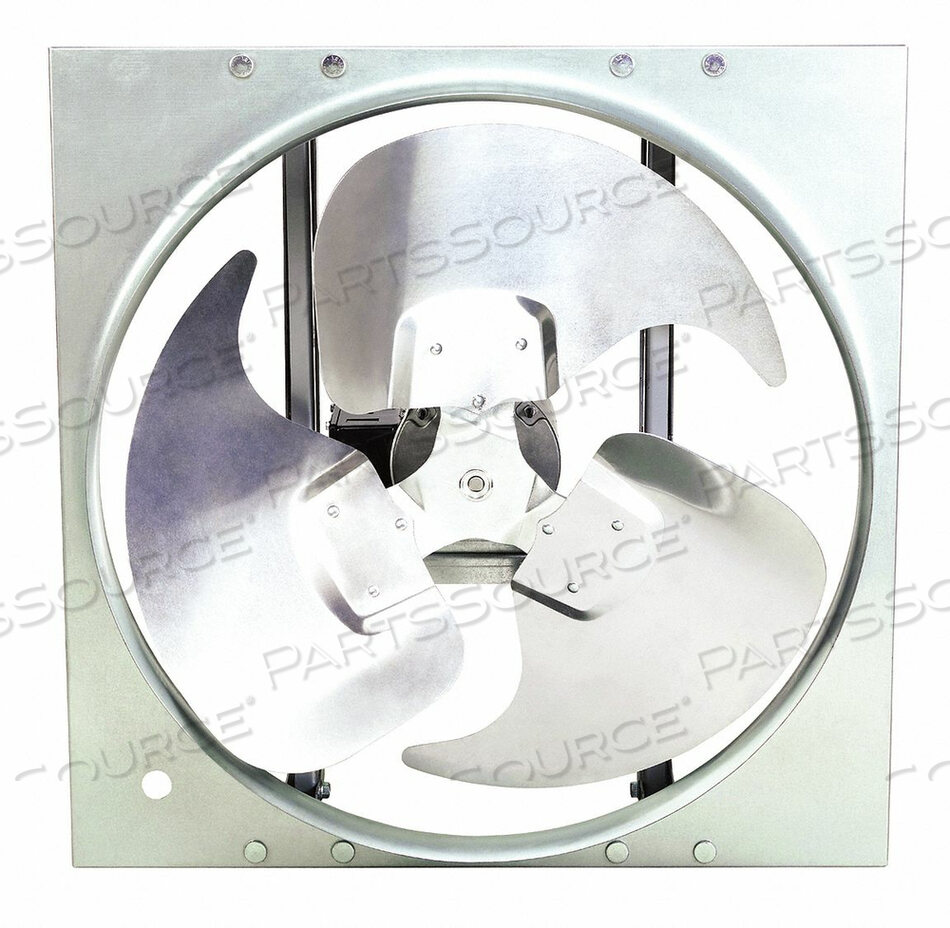

EXHAUST FAN 24 115/230V
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
10E047
Condition
New OEM Original
Returnable
No
Agency Compliance
UL and cUL Listed, AMCA
Aluminum Wall Shutter Number
3C308
Bearing Type
Ball
Blade Diameter
24 in
CFM @ 0.000 in SP
6,208 cfm
CFM @ 0.125 in SP
5,780 cfm
CFM @ 0.250 in SP
5,300 cfm
CFM @ 0.375 in SP
4,780 cfm
Exhaust/Supply Fan Item
Exhaust Fan
Exhaust/Supply Fan Motor HP
3/4 hp
Fan Voltage
115/230V AC
Fiberglass Wall Shutter Number
5C215
Flange Width (Inches)
1 in
For Use With
General Ventilation Applications
Frame Finish
Galvanized
Frame Material
Galvanized
Full Load Amps
7.5/3.8
Galvanized Wall Shutter Number
1C746
Height (Inches)
28 in
Hz
60
Intake Guard Number
1WBU3
Max Ambient Temperature (F)
104 Degrees F
Max Depth (Inches)
20 in
Motor Enclosure
Totally Enclosed Air Over
Motor Insulation
Class B
Motor RPM
1,150 RPM
Mounting Position
Vertical or Horizontal
Number of Blades
3
Phase
1
Propeller Material
Aluminum
Sones @ 0.000 in SP @ 5 feet
19
Sones @ 0.125 in SP @ 5 feet
17
Speed Control
No
Type
Industrial/Commercial Direct Drive
Venturi Depth (Inches)
3-3/8 in
Watts
559 W
Width (Inches)
28 in
