P/N: 10E018 Key Specs
Item

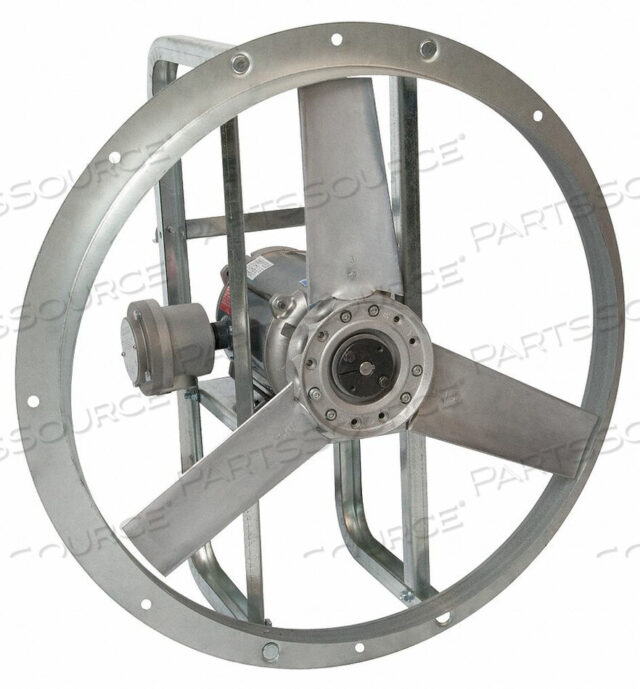

EXHAUST FAN 24 IN 3 PHASE HAZ LOCATION
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
10E018
Condition
New OEM Original
Returnable
No
Agency Compliance
UL and cUL Listed, AMCA, CSA Certified Motor
Bearing Type
Ball
Blade Diameter
24 in
CFM @ 0.000 in SP
3,837 cfm
CFM @ 0.125 in SP
3,305 cfm
CFM @ 0.250 in SP
2,637 cfm
CFM @ 0.375 in SP
1,970 cfm
Drive Package With Motor Included
No
Exhaust/Supply Fan Item
Exhaust Fan
Exhaust/Supply Fan Motor HP
1/3 hp
Fan Voltage
208-230/460V AC
Flange Depth (Inches)
1-7/8 in
For Use With
NEC Class I, Div 1, Group C and D, NEC Class II, Div 1, Group F and G
Frame Finish
Galvanized
Frame Material
Galvanized
Full Load Amps
1.8-1.6/.8
Height (Inches)
28-1/4 in
Hz
60
Inside Diameter (Inches)
24-1/2 in
Max Ambient Temperature (F)
104 Degrees F
Max Depth (Inches)
13-1/2 in
Motor Enclosure
Explosion Proof Fan Cooled
Motor Insulation
Class B
Motor RPM
1,750 RPM
Mounting Holes O.C. (Inches)
26-7/8 in
Mounting Position
Vertical or Horizontal
Number of Blades
3
Outside Diameter (Inches)
28-1/4 in
Phase
3
Propeller Material
Aluminum
Shaft Diameter (Inches)
1/2 in
Sones @ 0.000 in SP @ 5 feet
30
Type
Direct Drive, Hazardous Location
Venturi Depth (Inches)
2 in
Watts
248 W
Width (Inches)
28-1/4 in
