P/N: 1.50DXPSR04.00 Key Specs
Item

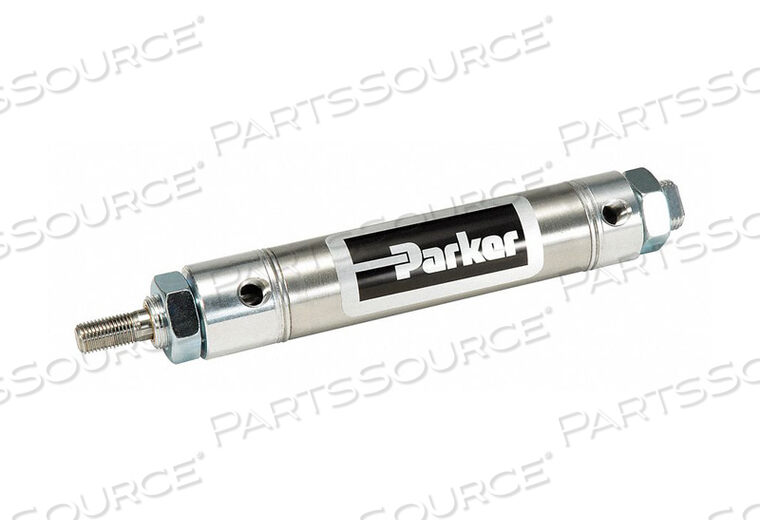

ROUND AIR CYLIN 1-1/2INBORE 4INSTROKE
OEM
Parker Hannifin Corporation
OEM #
1.50DXPSR04.00
Condition
New OEM Original
Returnable
No
Air Cylinder Bore Dia.
1 1/2 in
Air Cylinder Mount
Nose and Pivot
Air Cylinder Product Group
Air Cylinder
Air Cylinder Type
Round Body
Body Material
Stainless Steel
Bore Dia.
1 1/2 in
Cushion Type
None
Cylinder Action
Double Acting
Cylinder Type
Round Non-Repairable
End Cap Material
Aluminum
Finish
Silver
Magnetic Piston
No
Max. Pressure
250 psi
Mount
Nose and Pivot
Nose Mount Thread
3/4-16
Overall Length
9.5 in
Piston Material
Aluminum
Piston Rod Material
Stainless Steel
Pivot Hole Dia.
0.376 in
Port Size
1/8 in FNPT
Rod Dia.
0.437 in
Rod Thread Length
0.75 in
Rod Thread Size
7/16-20 UNF
Single Acting/Double Acting
Double Acting
Stroke
4 in
Temp. Range
-10 Degrees to 165 Degrees F
Tube Material
Stainless Steel
