P/N: 096039.00 Key Specs
Item

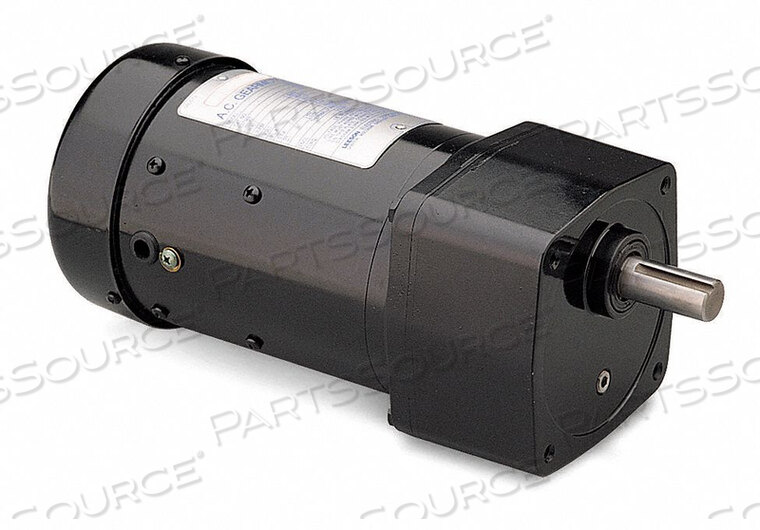

AC GEARMOTOR 85 RPM TEFC 230/460V
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
096039.00
Condition
New OEM Original
Returnable
No
Bearings
Needle, Oversized on Output Shaft
Full Load Amps
1.60/0.80
Gear Case Material
Die Cast Aluminum
Gear Material
Precision Machined and Hardened
Gear Ratio
20:1
Gear Type
AGMA Class 9
Gearmotor Brake Type
None
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Mounting Position
All Angle
Gearmotor Phase
3
Gearmotor Rotation
CW/CCW
Gearmotor Shaft Orientation
Parallel
Gearmotor Shaft Type
Single
Gearmotor Type
AC Gearmotor
Gears
Precision Machined and Hardened, AGMA Class 9
Housing
Die Cast Aluminum
Hz
60/50 Hz
Includes
Conduit Box
Input HP
1/3 hp
Length Less Shaft
11 7/8 in
Lubrication
Permanent Heavy Duty Gear Oil
Max. Ambient Temp.
40 Degrees C
Max. Torque
218.0 in-lb
Motor Type
3-Phase
Nameplate RPM
85 RPM
Overhung Load
300 lb
Seals
Single Lip, Spring Loaded, Heavy Duty
Shaft Dia. (Dimension U)
3/4
Shaft Length (Dimension V)
1.63
Standards
UL Recognized, CSA Certified
Thermal Protection
None
