P/N: 0945.25LP.U Key Specs
Item

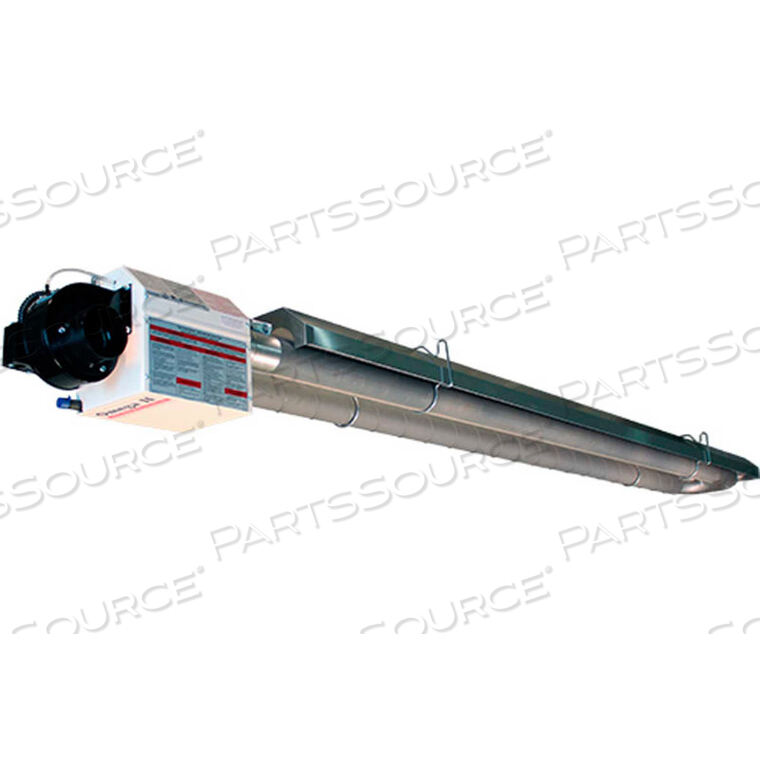

OMEGA II PROPANE GAS INFRARED HEATER U-TUBE — — 200000 BTU
OEM
Combustion Research Corporation
OEM #
0945.25LP.U
Condition
New OEM Original
Returnable
No
Amps High
1.4
Application
Commercial, Industrial
Btu High
200000
Burner Pressure W.C. Inches
10
Clearance To Combustibles Bottom Inches
80
Clearance To Combustibles Side Inches
48
Clearance To Combustibles Top Inches
7
Color
White
Connection Type
NPT Stainless Steel Gas Flex
Construction
Aluminum Reflectors / Aluminized Steel Emitter Tubes
Coverage Square Feet
3330
Duct Size Inches
4
Fuel Type
Propane
Gas Inlet Pressure Max. Water Column Inches
14
Gas Inlet Pressure Min. Water Column Inches
11
Height Inches
10-1/2
Hertz (Hz)
60
Horsepower
1/25
Ignition Type
Direct Spark
Length Feet
26-9/16
Limited Warranty Years
Burner 3, Tube 10
Listing, Rating, Certification
CSA
Manufacturer Part#
0945.25LP.U
Maximum Mounting Height Feet
30
Minimum Mounting Height Feet
16
Mount Type
Celling Suspension
Npt Inches
1/2
Phase
1
Power Cord Type
Hard Wired
Shape
U
Tube Construction
Aluminized Steel
Tube Length Feet
50
Type
Power Vented Infrared Tube Heater
Voltage
110
Watts High
58614
Weight Lbs
148
Width Inches
17
Wire Size
18-Gauge
