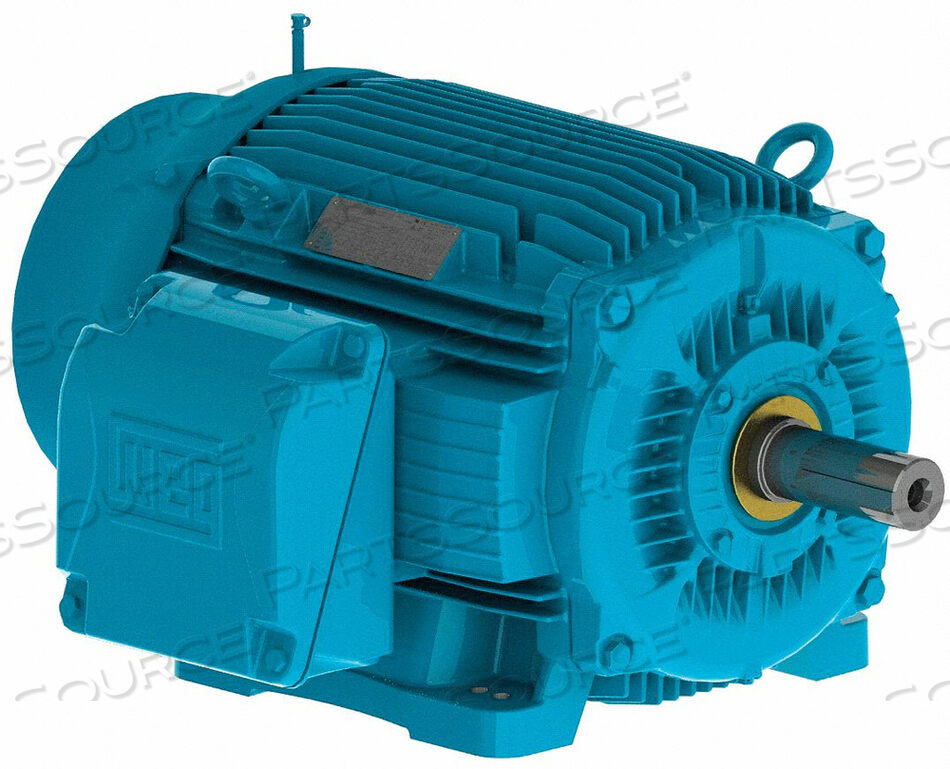

OEM#: 06018ST3QIE364T-W22MTR 3 PH 60 HP 1775 460V 364/5T EFF 95.0 by WEG
Технические характеристики
P/N: 06018ST3QIE364T-W22 Key Specs
Item
MTR 3 PH 60 HP 1775 460V 364/5T EFF 95.0
OEM
WEG
OEM #
06018ST3QIE364T-W22
Condition
New OEM Original
Returnable
No
CC Number
CC029A
Duty
Continuous
Frame
364/5T
Full Load Amps
68.3
HP
60
Hz
60
Ins. Class
F
Length Less Shaft
28-3/8 in
Manufacturers Warranty Length
3 yr
Max Ambient Temperature
40 Degrees C
Motor Application
IEEE Motor
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1.25
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1800
Nominal Efficiency
95 %
Number of Speeds
1
Overall Length
34-1/4 in
Phase
3
Shaft Diameter
2-3/8 in
Shaft Length
5-7/8 in
Standards
CE, CSA, NOM, UL
Voltage
460
