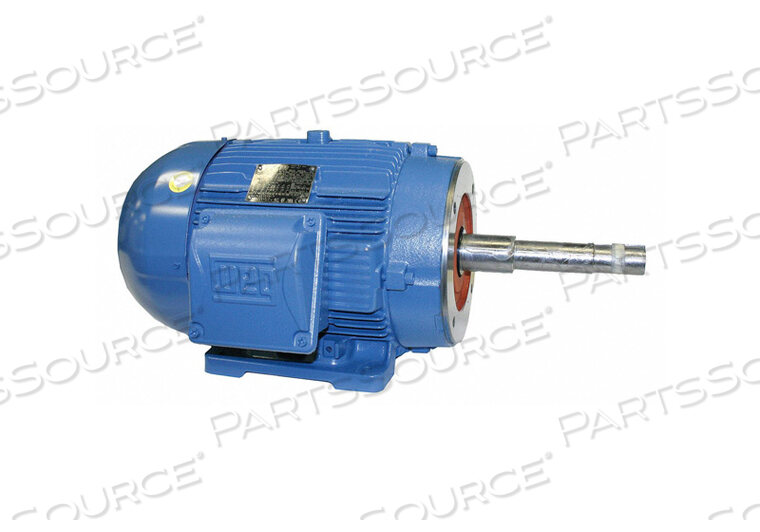

OEM#: 03018ET3E286JP-W22PUMP MTR 3PH 30HP 1765 208-230/460 286JP от WEG
Технические характеристики
P/N: 03018ET3E286JP-W22 Key Specs
Item
PUMP MTR 3PH 30HP 1765 208-230/460 286JP
OEM
WEG
OEM #
03018ET3E286JP-W22
Condition
New OEM Original
Returnable
No
CC Number
CC029A
Duty
Continuous
Frame
286JP
Full Load Amps
77.6-70.2/35.1
HP
30
Hz
60
Ins. Class
F
Inverter Rated
Yes
Length Less Shaft
23 11/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
Pump
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Iron
Motor Mounting Type
Face/Base
Motor Service Factor
1.25
Motor Shaft Design
JP Threaded
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Close-Coupled Pump
Motor Thermal Protection
None
Nameplate RPM
1765
Nominal Efficiency
93.6 %
Overall Length
31-9/16 in
Phase
3
Shaft Diameter
1-1/4 in
Shaft Length
7-7/8 in
Standards
CE Compliant, CSA Certified, UL Recognized
Voltage
208-230/460
Voltage Compatibility
208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
