P/N: 027-730G0150 Key Specs
Item

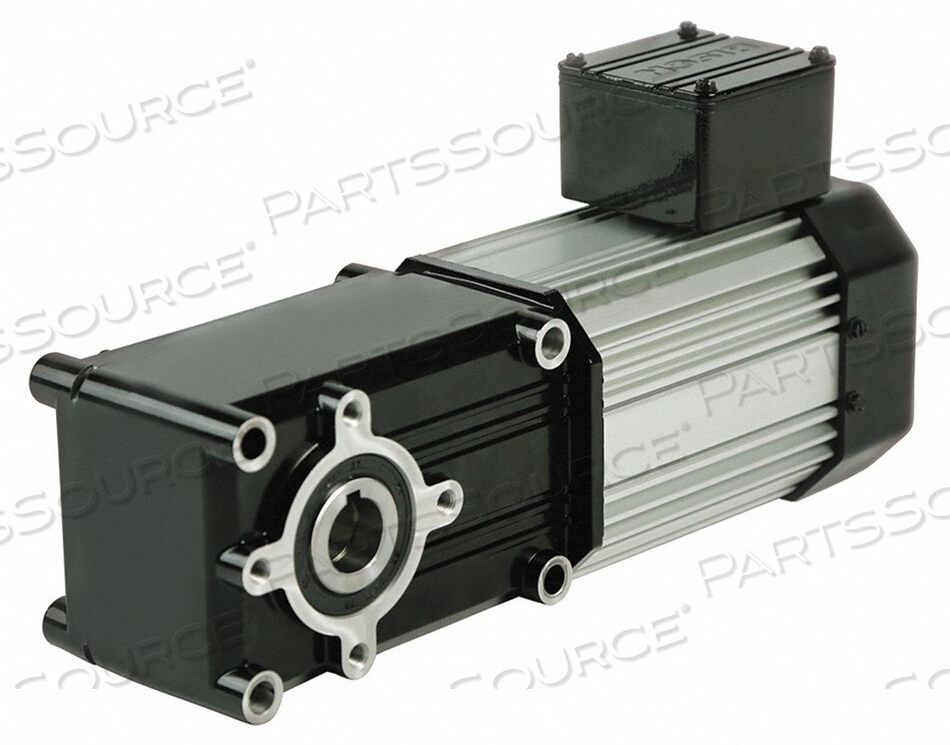

HYPOID GEARMOTOR 11.2 RPM TEFC 230V
OEM
Bison
OEM #
027-730G0150
Condition
New OEM Original
Returnable
No
Bearings
Ball
Capacitor Required
None
Finish
Painted
Full Load Amps
1.55
Gear Case Material
Die Cast Aluminum
Gear Material
Steel
Gear Ratio
150:1
Gearmotor Brake Type
None
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Mounting Position
All Angle
Gearmotor Phase
3
Gearmotor Rotation
CW/CCW
Gearmotor Shaft Orientation
Right Angle
Gearmotor Shaft Type
Hollow
Gearmotor Type
AC Gearmotor
Gearmotor Voltage
230V AC
Gears
Steel
Housing
Die Cast Aluminum
Hz
60/50 Hz
Input HP
1/4 hp
Insulation Class
F
Keyway Size Type
1/4 sq in x 1/4 in
Length Less Shaft
14 5/16 in
Lubrication
PowerSTAR EP
Max. Ambient Temp.
40 Degrees C
Max. Torque
1,090.0 in-lb
Motor Type
3-Phase
Nameplate RPM
11.2 RPM
No Load RPM
11.5 RPM
Overall Length
14.34 in
Overhung Load
1,010 lb
Reversible Shaft Output
Yes
Seals
Double Lip Output
Shaft Dia. (Dimension U)
1 1/4 in
Standards
UL Recognized, C-UL Recognized, CE Certified
Thermal Protection
None
