P/N: 027-725G0020 Key Specs
Item

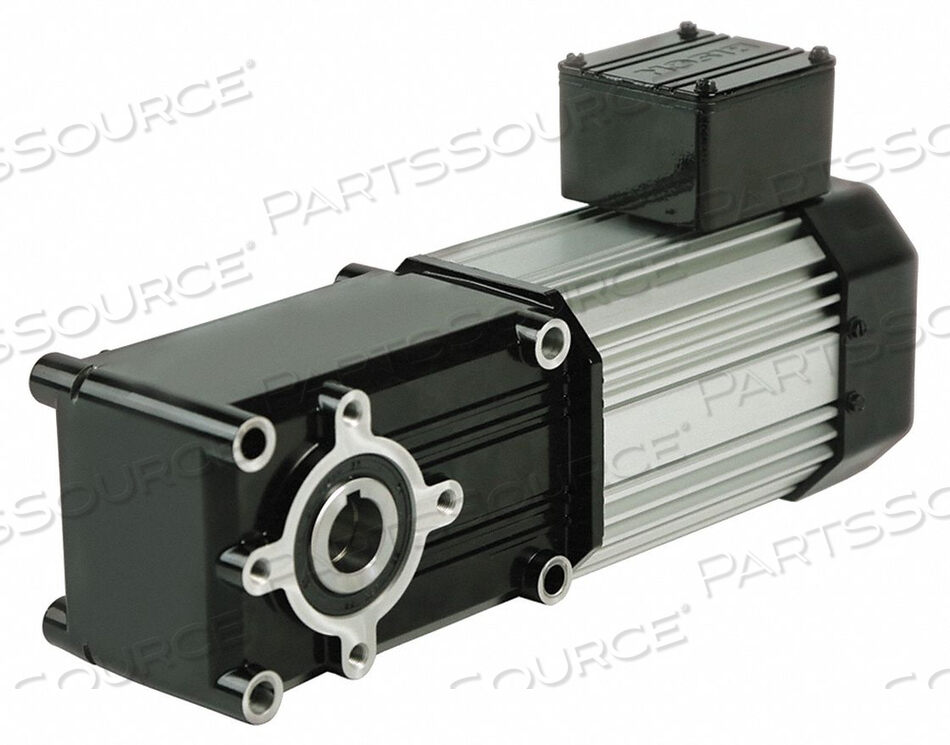

HYPOID GEARMOTOR 84.3 RPM TEFC 230V
OEM
Bison
OEM #
027-725G0020
Condition
New OEM Original
Returnable
No
Application
Industrial, Conveyor, Chip Auger, Packaging, Light Industry
Bearings
Ball
Capacitor Required
None
Finish
Gearbox Powder Coated Paint, Motor Anodized
Full Load Amps
1.1
Gear Case Material
Die Cast Aluminum
Gear Material
Hardened Steel
Gear Ratio
20:1
Gearmotor Brake Type
None
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Mounting Position
All Angle
Gearmotor Phase
3
Gearmotor Rotation
CW/CCW
Gearmotor Shaft Orientation
Right Angle
Gearmotor Shaft Type
Hollow
Gearmotor Type
AC Gearmotor
Gearmotor Voltage
230V AC
Gears
Hardened Steel
Housing
Die Cast Aluminum
Hz
60/50 Hz
Input HP
1/5 hp
Insulation Class
F
Keyway Size Type
1/4 sq in x 1 in
Length Less Shaft
13 7/16 in
Lubrication
PowerSTAR EP for Extended Life
Max. Ambient Temp.
40 Degrees C
Max. Torque
120.0 in-lb
Motor Type
3-Phase
Nameplate RPM
84.3 RPM
No Load RPM
84 RPM
Overall Length
13.62 in
Overhung Load
430 lb
Reversible Shaft Output
Yes
Seals
Double Lip
Shaft Dia. (Dimension U)
1 in
Standards
UL Recognized, C-UL Recognized, CE Certified
Thermal Protection
None
