Description

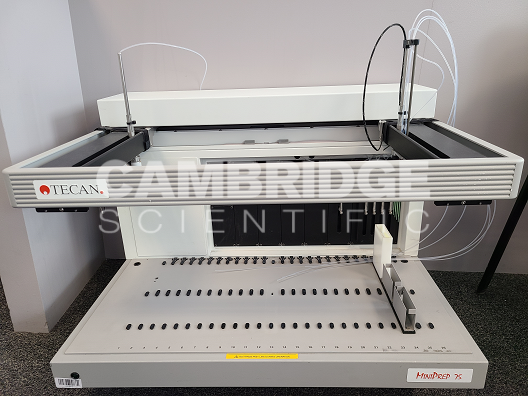

The MiniPrep can be equipped to perform repetitive laboratory procedures in a wide range of application areas:
- Nucleic Acid Extraction and Purification ( Solid Phase Extraction (SPE), or Magnetic Bead Separation (MBS) )
- Mother-Daughter Plate Replication
- ELISA Assays
- Immunophenotyping
- LC Injection
- Cell-Based Assays and Separations
- Protein Assays
Specifications:
- Pipetting Arms: 1 or 2
- Microplate Capacity Deck: 12
- Footprint: (W) 815 mm (32.1″) x (D) 600 mm (23.6″)x (H) 515 mm (20.3″)(H does not include Z-rack)
- Probe Travel Range: (W) 643 mm (25.3″) x (D) 300 mm (11.8″)x (H) 165 mm (6.5″)
- Weight: ~46 kg (100 pounds)
- Input Voltages: Auto-selecting 110/230 VAC +/- 10%
- Frequency: 47 – 63 Hz
- Maximum Power: 250 Watts
- 384 Well MTP Support: Yes
- Diluter 1, 8 Channel: Yes
- Disposable Tip: Yes
- LC Injection: Yes
- Volume Range: 0.5 µL – 25.0 mL
- Syringe Sizes: 250 µL – 25.0 mL
- Accuracy: <,1% @ full stroke with 1.0 mL syringe*
- Precision: <,0.05% CV @ full stroke with 1.0 mL syringe*
- Minimal Detectable Volume: 50 µL of ionic fluid in a 96 well flat bottom standard microplate format. A minimum 1 mm of ionic liquid level height is necessary for reliable liquid detection.
- Standard Software: Gemini Software for MiniPrep
*Accuracy and precision values determined using dilute salt solution (0.05 N NaCI). Liquid handling performance will differ depending on fluid type, tip type, tubing configuration and environmental conditions.
