Технические характеристики

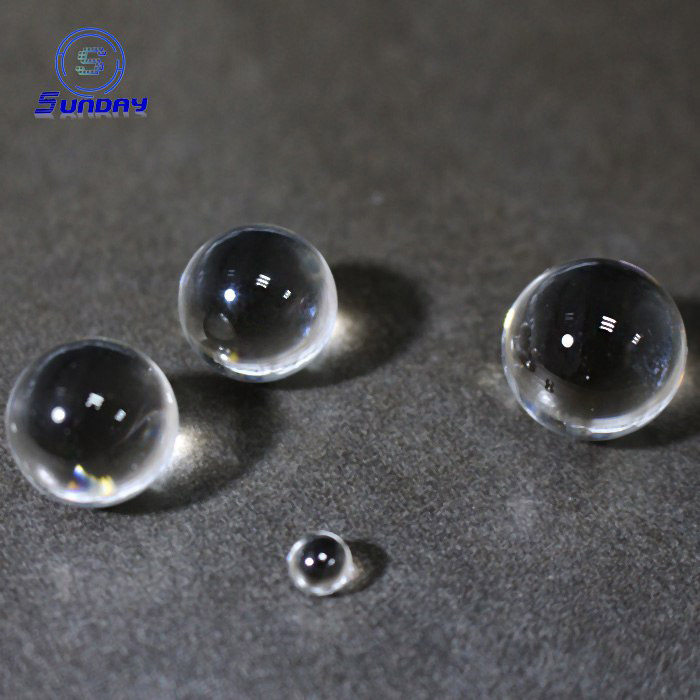

Ball lens is used to improve the signal coupling between optical fiber, transmitter and detector, improve the signal quality, and can also be used in endoscopy, bar code scanning, aspherical lens preprocessed materials, sensors, etc. The ball lens has a short focal length, which minimizes the distance needed to travel from the ball lens to the fiber. Ball lens commonly used in the optical fiber coupling, laser collimating device, Optical Measurement System, it has a shorter focal length and the characteristics of small size. Sunday produce ball lens, half ball lens, Super hemisphere ball lens, hollow ball lens.Sunday Optics can manufacture ball lens Minumum diameter 0.3mm.
Specifications:
Material:BK7 K9 Sapphire JGS1 UV Fused Silica, ZnSe Ruby
Size:0.3-200mm
Surface Quality:c40-20
Tolerance:+/-0.002mm
Coating: AR Coating
Ovality:+/-0.002mm
