The Mitutoyo standard type bore gage is available in measuring ranges from .7″-6″ to measure inside bore diameters with accuracy to .00008”. The bore gage comes with interchangeable anvils to measure various bore diameters with the same gage. A pendulum guide structure improves the slide of the gage for measurements while a two-point contact system detects geometry anomalies such as ovalness and taper.
- Does not include a Mitutoyo Dial Indicator
- Available in Inch models
- Optional extension rods are available to measuring deep hole with accuracy
- Large, newly designed grips are easier to hold and reduce heat transfer from the operator for better accuracy
- Models with dial indicators are fully protected by a rugged cover
- Gage stem diameter is .375”
- Interchangeable anvils are constructed of alloy steel with carbide-tipped measuring faces for added accuracy and durability
- Supplied in a fitted plastic case
| Order No.: | Product Image: | Range: | Number of anvils: | Number of spacers: | |
|---|
| 511-731 | — | 0.7-1.4″ | 9 | 2 |
| 511-732 | — | 1.4-2.5″ | 6 | 4 |
| 511-733 | — | 2-6″ | 11 (2″ Sub Anvil) | 4 |
| 511-734 | — | 4-6.5″ | 13 | 4 |
| 511-735 | — | 6.5-10″ | 6 | 7 |

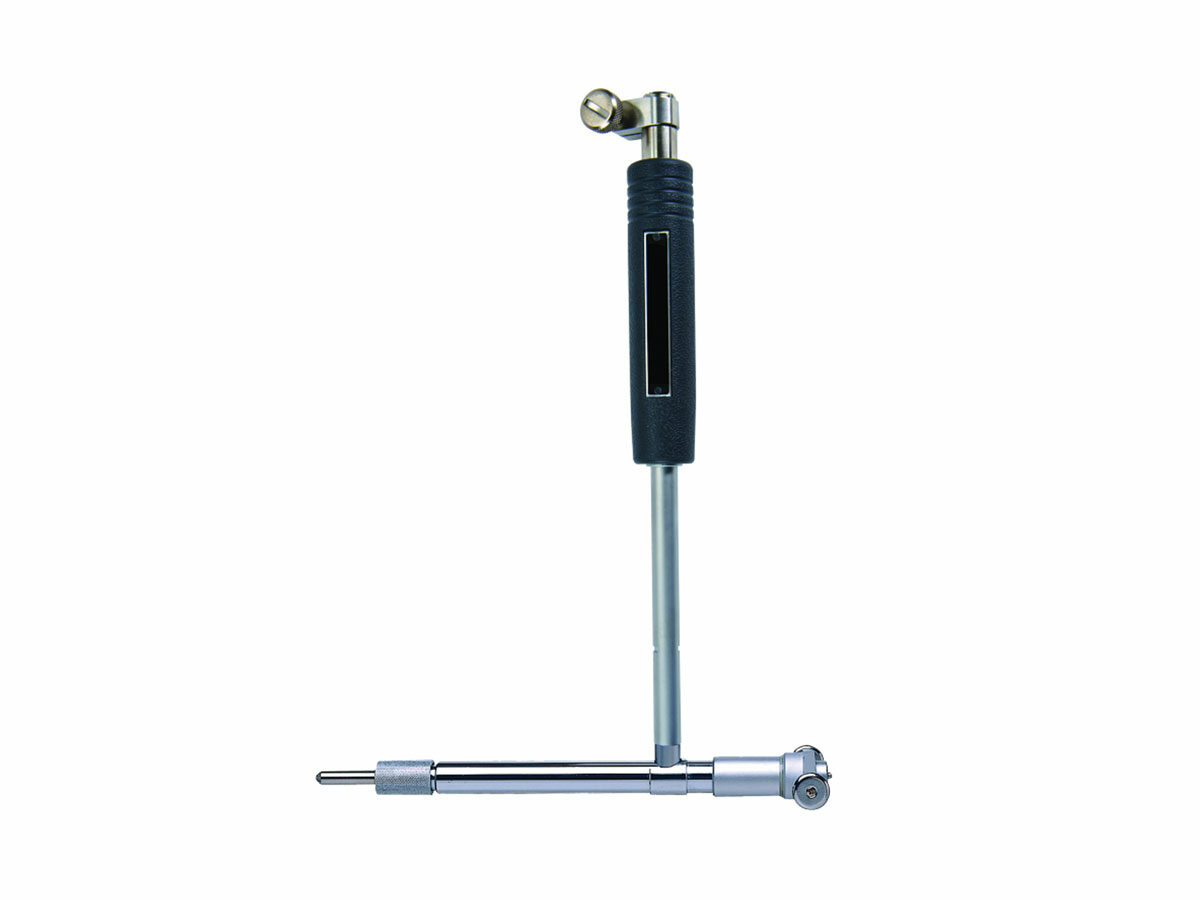

| 511-736 | — | 10-16″ | 5 (3″ Sub Anvil) | 7 |
| 511-731 |
| 511-732 |
| 511-733 |
| 511-734 |
| 511-735 |
| 511-736 |
Технические характеристики
| Technology: | Mechanical |
|---|
| Contact Point: | Carbide Tipped |
|---|
| Units: | Inch |
|---|
| Stem Diameter: | 3/8′ |
|---|
| With Dial Gage Protective Cover (21DZA000): | No |
|---|
