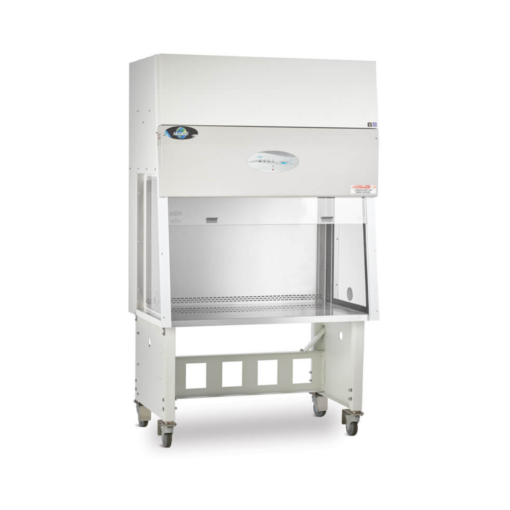

Product Description VERTICAL LAMINAR AIRFLOW | POWERFUL DC ECM MOTOR | STAINLESS STEEL WORK AREA | USP 797 DRUG COMPOUNDING The AireGard generates HEPA-filtered vertical laminar airflow to provide product protection for sterile but non-hazardous drug compounding or non-hazardous work in microbiology and research labs. The DC ECM motor draws air through a pre-filter and propels it through a HEPA filter to create an ISO Class 5 level of air cleanliness inside a work zone surrounded by stainless steel walls and a work surface made of stainless steel with a PVC core. One easily monitors workbench performance through the Aeromax control system that visualizes pressure in the internal airflow plenum. The work zone comes standard with cord-pass throughs and fluorescent lighting but can be optionally configured with polycarbonate walls, an IV bar, LED lighting, outlets, and service valves to meet the demands of your pharmacy or labs workflow. It is the only model that can be fitted with a UV light and sliding window. Quick Specs AIR CLEANLINESS (ISO 14644) ISO-Class-5 AIRFLOW DIRECTION Vertical AIRFLOW VELOCITY 90 fpm (0.46 m/s) CONTROL SYSTEM AeroMax PROTECTION Product Features Single DC ECM Motor Flexible HEPEX Plenum ISO Class 5 Work Zone Prefilter Stainless Steel Sidewalls Stainless Steel Work Surface with PVC Core Cord-Pass Through on Both Sides 25 ¼, inch (642mm) Access Height Fluorescent Lighting Digital Pressure Sensor Aeromax Control System #col-215182033 > .col-inner { margin: 0px 0px -49px 0px, } GREEN LIGHT, YELLOW LIGHT, RED LIGHT AEROMAX CONTROL SYSTEM The Aeromax control system visualizes airflow plenum pressure through a series of multicolored lights and activates both an audible and visual alarm whenever workbench performance departs from normal parameters. POWERFUL YET QUIET ULTRA HIGH EFFICIENCY MOTOR The single DC ECM motor powers the airflow though the workbench while economizing energy and minimizing noise. This motor provides enough power to compensate HEPA filter loading for years to come and thereby minimize your laboratorys lifetime cost of HEPA filter replacement. #col-708943575 > .col-inner { padding: 0px 8px 0px 8px, } SPREADING THE FLOW HEPEX FLEXIBLE AIR PLENUM NuAires signature flexible plenum design complements the DC ECM motor to uniformly distribute the downflow air across the supply HEPA filter and ensure that the airflow in the work zone is laminar. This distinct design also evenly spreads filter loading to ensure a long HEPA filter life. SMOOTH SURFACES FOR A SMOOTH WORKFLOW STAINLESS STEEL WORKZONE The stainless steel walls and stainless steel work surface with PVC core provide a work zone that is robust, cleanable, and already provided with two standard cord-pass throughs to make it an ideal primary engineering control for non hazardous compounding in pharmacies or clean air workbench for a microbiology lab. #col-547138037 > .col-inner { padding: 0px 8px 0px 8px, } Specifications Air Cleanliness (ISO 14644) ISO-Class-5 Airflow Direction Vertical Airflow Velocity 90 fpm (0.46 m/s) Casters N/A Closure Panels Optional Rear Closure Panels for Seismic Brackets Construction 16/18 GA, powder coated steel exterior, 16/18 GA type 304 SST work zone Control System AeroMax Cord Pass Through Standard on Right and Left Side Wall Diffuser Metal Non-flammable Electrical Configuration 115V50Hz, 230V5060Hz HEPA Filter Seal Type HEPEX Seal- Neoprene, Spring-loaded IV Bar with 6 Hooks Optional Lighting Standard Fluorescent with Optional LED Light Intensity fc (Lux) 90 (968) Motor(s) DC ECM Outlet(s) Optional, Under Work Surface Performance Standard IEST-RP-CC002-4, ISO-14644-1 Plenum Type HEPEX Power Cord Length Foot (Meter) 12 (3.7) Pre-filter Top of Unit Protection Product Safety Certification UL, UL-C Seismic Brackets or Studs Optional Rear or Floor Mount Seismic Brackets Service Couplings (3/8-inch NPT) N/A Service Valves (3/8-inch NPT) Optional, Up to 3 Each Sidewall Sidewalls Standard Stainless Steel, Optional Polycarbonate Style Bench top, optional base stand Supply Filter 3-inch (76mm) 99.99% Efficiency on 0.3 microns Ultraviolet (UV) Light Optional Work Surface Standard Stainless Steel with PVC Core, Optional Nevamar with PVC Core
Технические характеристики
Technical Specifications
| Air Cleanliness (ISO 14644) | ISO-Class-5 |
| Airflow Direction | Vertical |
| Airflow Velocity | 90 fpm (0.46 m/s) |
| Casters | N/A |
| Closure Panels | Optional Rear Closure Panels for Seismic Brackets |
| Construction | 16/18 GA, powder coated steel exterior, 16/18 GA type 304 SST work zone |
| Control System | AeroMax |
| Cord Pass Through | Standard on Right and Left Side Wall |
| Diffuser | Metal Non-flammable |
| Electrical Configuration | 115V50Hz, 230V5060Hz |
| HEPA Filter Seal Type | HEPEX Seal- Neoprene, Spring-loaded |
| IV Bar with 6 Hooks | Optional |
| Lighting | Standard Fluorescent with Optional LED |
| Light Intensity fc (Lux) | 90 (968) |
| Motor(s) | DC ECM |
| Outlet(s) | Optional, Under Work Surface |
| Performance Standard | IEST-RP-CC002-4, ISO-14644-1 |
| Plenum Type | HEPEX |
| Power Cord Length Foot (Meter) | 12 (3.7) |
| Pre-filter | Top of Unit |
| Protection | Product |
| Safety Certification | UL, UL-C |
| Seismic Brackets or Studs | Optional Rear or Floor Mount Seismic Brackets |
| Service Couplings (3/8-inch NPT) | N/A |
| Service Valves (3/8-inch NPT) | Optional, Up to 3 Each Sidewall |
| Sidewalls | Standard Stainless Steel, Optional Polycarbonate |
| Style | Bench top, optional base stand |
| Supply Filter | 3-inch (76mm) 99.99% Efficiency on 0.3 microns |
| Ultraviolet (UV) Light | Optional |
| Work Surface | Standard Stainless Steel with PVC Core, Optional Nevamar with PVC Core |
