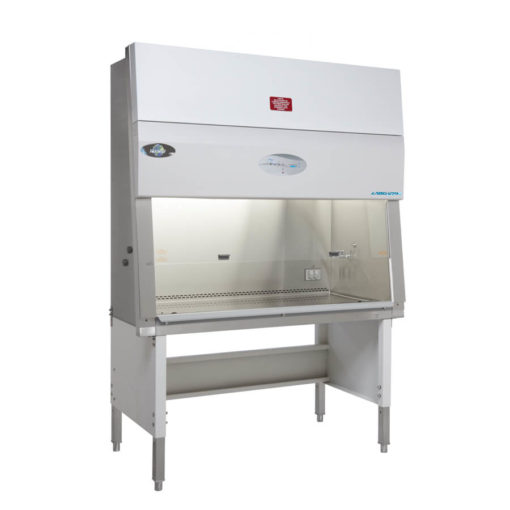

NuAire 5 Класс II Тип A2 BSC 120 В 60 Гц.

Product Description Never Been Used (some slight cosmetic damages due to shipping) LabGard ES AIR Limited NU-545 Class II, Type A2 Biosafety Cabinet The LabGard ES (Energy Saver) AIR Limited Model NU-545 Biological Safety Cabinet (BSC) is a primary engineering control in obtaining the optimum product quality while reducing the potential for exposure of both product and personnel to airborne biological or particulate chemical agents in low to moderate risk-hazard research and drug preparation or product operations, as prescribed by the Center for Disease Control (CDC) Atlanta, Georgia. alog Number Catalog Number NU-545-300 Nominal 3 foot (0.9m) NU-545-400 Nominal 4 foot (1.2m) NU-545-500 Nominal 5 foot (1.5m) NU-545-600 Nominal 6 foot (1.8m) Performance Specifications Personal Protection Product Protection NSF/ANSI 49 NSF/ANSI 49 NSF/ANSI 49 NSF/ANSI 49 NSF / ANSI 49 Class II, Type A2 Class II, Type A2 Class II, Type A2 Class II, Type A2 Style of Cabinet Bench top/console w/base stand/storage cabinet Bench top/console w/base stand/storage cabinet Bench top/console w/base stand/storage cabinet Bench top/console w/base stand/storage cabinet Cabinet Construction All welded stainless steel 16GA, Type 304 pressure tight design All welded stainless steel 16GA, Type 304 pressure tight design All welded stainless steel 16GA, Type 304 pressure tight design All welded stainless steel 16GA, Type 304 pressure tight design Diffuser for Air Supply (Metal) Non-flammable Non-flammable Non-flammable Non-flammable HEPA Filter Seal Type: Supply Filter-99.995% Eff. on 0.3 microns Exhaust Filter-99.995% Eff. on 0.3 microns HEPEX Seal Neoprene, Spring-loaded HEPEX Seal Neoprene, Spring-loaded HEPEX Seal Neoprene, Spring-loaded HEPEX Seal Neoprene, Spring-loaded Fumigation : NSF / ANSI 49 Procedures Yes Yes Yes Yes Standard Services: Service Coupling (3/8 inch NPT) Gas Valve/Service Coupling (3/8inch NPT) Outlet One, Right Sidewall One, Right Sidewall Two, Backwall One, Right Sidewall One, Right Sidewall Two, Backwall One, Right Sidewall One, Right Sidewall Two, Backwall One, Right Sidewall One, Right Sidewall Two, Backwall Optional Services: Gas Cocks 3/8 NPT Ultraviolet Light Standard/Cup Sinks Up to 3 ea. Sidewall One, Backwall Left or Right Work Surface Up to 3 ea. Sidewall One, Backwall Left or Right Work Surface Up to 3 ea. Sidewall One, Backwall Left or Right Work Surface Up to 3 ea. Sidewall One, Backwall Left or Right Work Surface Cabinet Size Inches (mm): Height (Fully Assembled) Height (Minimum for Transport) Width Depth (with Control Center) And Armrest Removed 60 7/8 (1546) 59 (1499) 41 5/8 (1057) 32 &frac14, (819) 60 7/8 (1546) 59 (1499) 53 5/8 (1362) 32 &frac14, (819) 60 7/8 (1546) 59 (1499) 65 5/8 (1669) 32 &frac14, (819) 60 7/8 (1546) 59 (1499) 77 5/8 (1972) 32 &frac14, (819) Work Access Opening Inches (mm): Standard Opening Height/Optional Standard Inflow Velocity 10 (254) / 8 (203) 105 FPM (.53 m/s) 10 (254) / 8 (203) 105 FPM (.53 m/s) 10 (254) / 8 (203) 105 FPM (.53 m/s) 10 (254) / 8 (203) 105 FPM (.53 m/s) Work Zone Inches (mm): Height Width Depth measured at 10 inches (254mm) window height 28 1/2 (724) 34 3/8 (873) 26 (660) 28 1/2 (724) 46 3/8 (1178) 26 (660) 28 1/2 (724) 46 3/8 (1178) 26 (660) 28 1/2 (724) 70 3/8 (1788) 26 (660) Viewing Window Inches (mm): Standard is safety plate sliding glass Fully closed to 18 (457) open Fully closed to 18 (457) open Fully closed to 18 (457) open Fully closed to 18 (457) open Required Exhaust CFM/CMH Standard/Optional: Canopy Variable Flow Thimble (NU-911) Canopy Fixed Flow Thimble (NU-907) 10 (254) / 8 (203) opening CFM (CMH) 276-501 (649-851) / 226-450 (383-765) 320 (544) / 269 (457) 10(254) / 8(203) opening CFM (CMH) 363-588 (617-1000) / 295-520 (502-884) 426 (724) / 359 (610) 10(254) / 8(203) opening CFM (CMH) 451-676 (766-1149) / 365-590 (621-1003) 531 (902) / 445 (756) 10(254) / 8(203) opening CFM (CMH) 538-763 (915-1297) / 436-661 (741-1124) 634 (1077) / 532 (904) Plant Duct Static Pressure Eng./Metric 0.05-0.1/1.27-2.54mm H2O 0.05-0.1/1.27-2.54mm H2O 0.05-0.1/1.27-2.54mm H2O 0.05-0.1/1.27-2.54mm H2O Heat Rejected, BTU, Per Hour (non-vented) (vented) 10 (254) / 8 (203) opening 903 / 826 120 10(254) / 8(203) opening 1140/1020 157 10(254) / 8(203) opening 1768/1611 198 10(254) / 8(203) opening 1884/1768 198 Electrical: Volts, AC 60 Hz +Amps: Blower/Lights (10/8 openings) Amps: Duplex Rated Amps: 12 ft. Power Cord (one) U.L./U.L.-C Listed 115 2.3 / 2.1 3 10 14 GA 3 Wire, 15A U.L./U.L.-C Listed 115 2.9/2.6 3 14 12 GA 3 Wire, 20A U.L./U.L.-C Listed 115 4.5/4.1 3 16 12 GA-3 Wire, 20A U.L./U.L.-C Listed 115 4.8/4.5 3 16 12 GA-3 Wire, 20A Crated Shipping Weight:*** Net Weight 460 lbs. /209 kg. 410 lbs. /186 kg. 530 lbs. /240 kg. 480 lbs. /218 kg. 620 lbs. /281 kg. 570 lbs. /258 kg. 690 lbs. /313 kg. 640 lbs. /290 kg. Vibration Control The motor/blower system is suspended inside the BSC using the attenumont system, a shock absorbing technology minimizing vibration transfer from the motor to the cabinet. The HEPEX Zero Leak Airflow System uses an impermeable, antimicrobial, and flameproof flexible fabric to make up the BSCs plenum eliminating vibration transfer from the motor/blower to the plenum. Clean-ability The interior of the BSC features smooth coved corners for easy clean-ability. A spill trough with drain valve is located under the work surface to catch any unwanted spills. The work surface comes optionally with a prop-up work tray to easily clean under the work surface. Quality Advantage Filter Integrity Check Model NU-545 features larger 99.99% @ 0.3 &mu, efficiency HEPA filters that are tested using IEST Recommended Practices as prescribed by biosafety cabinetry standard NSF/ANSI 49. Exhaust and Supply HEPA filters feature more filter media equating to longer filter life and lower operating costs. HEPA filters are tested twice during the manufacturing process. Once before the filter is installed and again fitted in the biosafety cabinet before it ships. This integrity check process ensures you receive the safest biosafety cabinet out of the box with zero headaches. We believe in our process so much we included our filters in our warranty. Biological Tolerance Testing Assures Optimal Performance A Biological Safety Cabinets performance consists of a range of operational airflow parameters: air inflow and down flow velocities within a cabinet design will pass standard microbiological aerosol tests for personnel, product, and environmental protection. Effective Biological Safety Cabinet performance can be greatly affected by different laboratory conditions: Size of the laboratory, the location of the cabinet within a room, traffic patterns of laboratory personnel, electrical variations, airflow ducts and grills, and other equipment. The greater the extremes, the increased likelihood a cabinet will pass-the safer the cabinet design. NuAire Class II Biological Safety Cabinets operate and can maintain maximum containment characteristics throughout a range of real world conditions. Standard Features Monolithic 16/18 Gauge, Type 304 Stainless Steel Welded Pressure Tight Construction (Silicone Free) Ultra-high Efficiency Motor TouchLink2 Electronic Control System Intelliflow Airflow Monitoring Automatic Filter Loading Compensation Motor Speed Controller Internal Exhaust Damper NiteCare Night Setback HEPEX Zero Leak Airflow System Front Filter Removal Permanent Plenum with Quick Release Supply Filter Metal Diffuser Over Supply Filter 3-inch (76 mm) Supply HEPA Filter 99.99 @ 0.3 Micron Efficiency Rating 12-inch (305 mm) Exhaust HEPA filter 99.99 @ 0.3 Micron Efficiency Rating Attenumont Vibration Control Exterior LED Lighting 10-inch [254 mm] Access Opening (NSF/ANSI 49) Frameless Sliding Tempered Glass View Screen Gasketed Window Frame Heavy Duty, Ergonomic Plastic Armrest Removable Work Tray Work Surface Support System Spill Trough with Drain Valve Two Duplex Outlet Back-wall One Service Valve Right Side Wall One Service Coupling Right Side Wall Two Service Couplings Left Side Wall Power Cord

Технические характеристики
