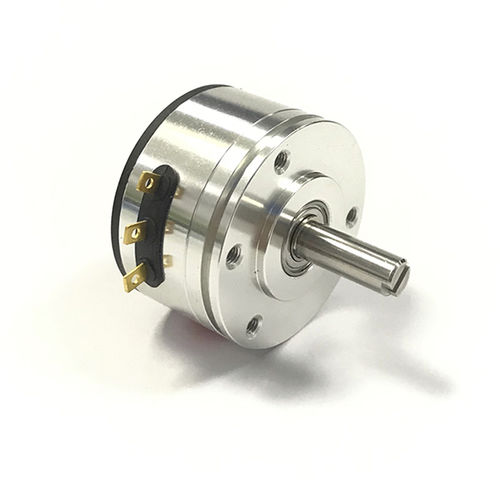

WDH35A Series 1-turn Contactless Potentiometer (Patented) — Magnetic rotary sensor — Economy version — With side lug terminals — With a set of precision ball bearings — Screw&Servomount — Housing diameter Φ35mm — Output direction: Clockwise (W), Counterclockwise (C) — Effective electrical angle: Any angle within 360° Gerneral Mechanical Specifications — Mechanical angle: 360° (Endless) — Protection degree: IP40 — Operating torque:
Технические характеристики
CharacteristicsTypeabsoluteTechnologymagnetic, potentiometerAbsolute encoder revolution number12-bitConstructionnon-contact, solid-shaft, single-turnOutput signalanalog, voltage output, current outputSupply voltage15VDC, 24 Vdc, 5 VDC, 12 VdcMaterialstainless steel, aluminumProtection levelexplosion-proof, shock resistant, for harsh environments, rugged, secure, IP40, robustApplicationsindustrial, for OEM, for harsh environments, for motorsOther characteristicscompact, miniatureHousing diameter
35 mm (1 in)
Shaft diameter
6 mm (0 in)
Length
39.5 mm (1.555 in)
Rotational speed
Max.: 6,000 rpm (37,699 rad.min-1)
Min.: 0 rpm (0 rad.min-1)
Process temperature
Max.: 125 °C (257 °F)
Min.: -40 °C (-40 °F)
