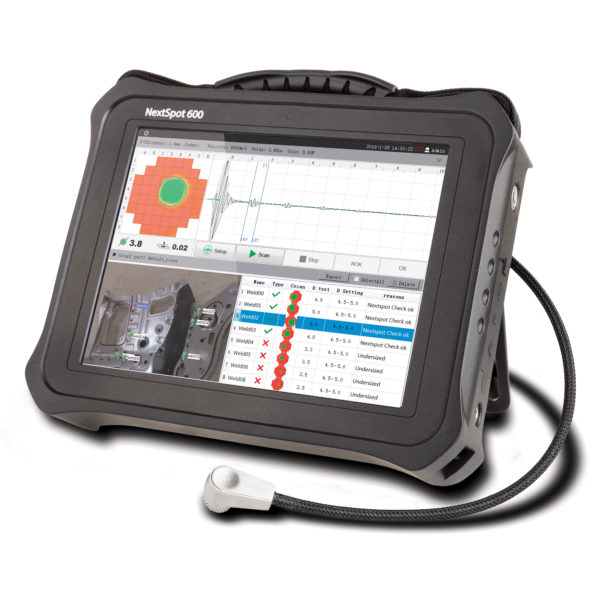

Product Information Key Features and Benefits
Rugged and Portable All Aluminum Alloy
NextSpot 600 is constructed with an all aluminum alloy shell with 360° shielding. It adopts a one-piece aluminum alloy with rubber coating that makes it rugged, lightweight, and compact. The unit is also weather protected and stress tested so that It can operate from -10°C ~ 50°C. Weighing at only 3 kg, NextSpot 600 is both portable and reliable, especially for conducting field testing.
Long Battery Life ARM Technology
NextSpot 600 uses the ARM processor, which know for energy efficient, and along with a fanless design, a fully charged unit can perform 12 hours of normal operation, and requires only 3 hours for a complete recharge.
Exceptional Visual Interface 10.4 inches Full Touch Screen with XGA Wide-angle View
Testing in the field are often conducted in harsh environments where visibility may be poor and requires having to wear gloves. The NextSpot 600’s 10.4 inch full touchscreen with XGA wide-angle viewing help address these common issues all while giving you the most accurate visual results and feedback.
Accurate Measurement 64 Channels, 1MHz-25MHz Bandwidth, 400 Mhz/12 bits DSP
By adopting a parallel 64 channel design, 1MHz-25 MHz analog bandwidth, and 12 bits DSP, it gives NextSpot 600 the most accurate measurement of welding nuggets and indentations. Furthermore, the results are all visual and can be immediately determined whether the results are passed or failed.
Real-time Imaging and Other Testing Methods
NextSpot 600 can provide A/C scan and real-time display on spot weld. NextSpot 600 can support single element probe testing, PA imaging testing as well as various nonultrasonic methods, data capture, chisel inspection, visual inspection, and many more.
Powerful, Flexible, yet Easy-To-Use Software
At the heart of the device is our NextSoft Analyser user interface that we build from the ground up. Built on top of the Linux OS platform, it provides a safe, reliable and stable platform for our software system. Boasting a 10 seconds startup time, it can be quickly and easily setup to perform real-time image scanning on spot welds.
Specifications Housing
Overall Dimensions 287 mm × 267 mm × 67 mm (11.3 in. × 10.6 in. × 2.6 in.)
Weight 3.5 kg (7.7 lb) with Battery
IP IP 54
Control Device Remote Control, Touch Screen
Probe D-sub 68 – Matrix
Power Socket 5.5-2.5 mm DC Socket
Environmental
Operating Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F) with Battery, -20°C to 70°C (-4°F to 158°F) without Battery
Relative Humidity Max. 70% RH at 45°C Non-condensing
Display
Display Size 26.4 cm (10.4 in.)
Resolution 1024 x 768
Brightness 600 cd/m
Viewing angles Horizontal: –89° to 89° Vertical: –89° to 89°
Probe D-sub 68 – Matrix
Type TFT LCD
Power Supply
Battery Type Smart Li-ion Battery
Number of Batteries One
Battery Life Approximately 12 Hours Under Normal Operating Conditions
Power Supply Unit 100-240 V AC, 47-63 Hz, 1.45 A
PRF 8K Hz (No Continuous Pulse Series)
Ultrasound Specs
Number of Channels/Elements 64 Channels / 52 Elements
Voltage 50 V
Pulse Shape Negative Square Wave
Initial Pulse Rise Time <,2.5 ns
Damping 50 ohm
Thickness Measuring Range 0.5-9 mm
Velocity Range 2000-8000 m/s
Probe Delay 2-8 us
Frequency (Center Frequency) 1 Mhz – 25 Mhz (16 MHz)
Gain 40 dB
Sampling 12 bit 100 MSPS
Data Views
Display Mode A-scan, C-scan
Welding Nugget Real-Time Welding Nugget Diameter Measurement
Indentation Real-Time Detect, Smart Average
Data Synchronism USB, NAS (Optional)
Note: Manufacturer reserves the rights to technical modifications without prior notice.
