Product Information Key Features and Benefits

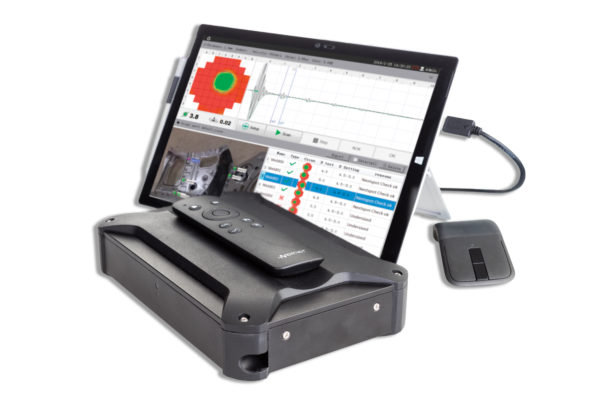

NextSpot 300 is a powerful ultrasonic spotwelding inspection system that is suitable for the flexible collaboration with varies computing systems.
Tough & Rugged
NextSpot 300 is designed with 360° shielding, it adopts an one-piece aluminum alloy and covered with rubber protections. It is rugged, lightweight, and compact. The total weight of the body is about 2kg.
Compact yet Powerful
NextSpot 300 is compact but it has the same ultrasonic specifications and inspection capabilities as well as that of NextSpot 600.
Flexible for various applications
NextSpot 300 is flexible for varies utility scenes, and it can be embedded and integrated with the unique inspection systems that tailor-made by the end users.
Low Power Consumption
NextSpot 300 is efficient and low power consumption, it only needs to get power from the PC，laptop or a computer workstation via a piece of USB 3.0 cable.
Solution for Big Data Analysis and Smart Spotwelding Inspections
NextSpot 300’s database technologies allow efficient data uploading to NAS servers for big data analysis. The analysis of spotwelding quality inspection data can be linked with the welding process data records of every single welding Spots, therefore the optimizations of the welding process setting will be supported with huge volume of inspection data.
Real-time Imaging and Other Testing Methods
NextSpot 300 can provide A/C scan and real-time display on spot weld. NextSpot 300 can support single element probe testing, PA imaging testing as well as various non-ultrasonic methods, data capture, chisel inspection, visual inspection, and many more.
Specifications Housing
Overall Dimensions 240.6 mm × 158.6 mm × 50 mm
Weight 2.0 kg (4.4 lb) with Battery
IP IP 54
Control Device Remote Control, Mouse, or Touch Screen of PC
Probe D-sub 68 – Matrix
Environmental
Operating Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F) with Battery, -20°C to 70°C (-4°F to 158°F) without Battery
Relative Humidity Max. 70% RH at 45°C Non-condensing
Ultrasound Specs
Number of Channels/Elements 64 Channels / 52 Elements
Voltage 50 V
Pulse Shape Negative Square Wave
Initial Pulse Rise Time <,2.5 ns
Damping 50 ohm
Thickness Measuring Range 0.5-9 mm
Velocity Range 2000-8000 m/s
Probe Delay 2-8 us
Frequency (Center Frequency) 1 Mhz – 25 Mhz (16 MHz)
Gain 40 dB
Sampling 12 bit 100 MSPS
Data Views
Display Mode 52 channels A-Scan, Dynamic C-Scan Image
Welding Nugget Real-Time Welding Nugget Diameter Measurement
Indentation Real-Time Inspection (Smart Average)
Data Synchronism Local drives data converting, USB, NAS
Note: Manufacturer reserves the rights to technical modifications without prior notice.
