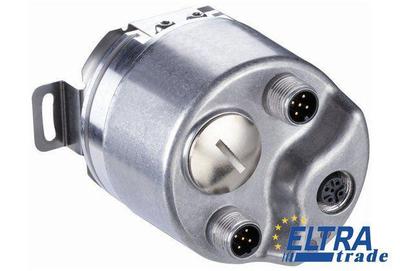

Specification:
| Part Number | 1038825 |
| MTTFd: mean time to dangerous failure: | 60 a (EN ISO 13849-1) |
| Connection type: | 3 x M12, 5-pin, axial |
| Operating torque: | 0.8 Ncm (+20 °C) |
| Mechanical interface: | Blind hollow shaft |
| Resolution: | 13 bit x 13 bit |
| Enclosure rating: | IP 65 (according to IEC 60529), Shaft, IP 67 (according to IEC 60529), housing |
| Permissible relative humidity: | 95 % (Condensation not permitted) |
| Bus: | PROFIBUS DP |
| Max. number of steps per revolution: | 8,192, programmable |
| Mass: | 0.28 kg |
| Shaft material: | Stainless steel |
| Initialization time: | Ca. 1 s |
| Electrical interface: | PROFIBUS DP |
| EMC: | (according to EN 61000-6-2 and EN 61000-6-3) |
| Working temperature range: | -10 °C … +70 °C |
| Resistance to shocks: | 100 g, 6 ms (according to EN 60068-2-27) |
| Resistance to vibration: | 30 g, 10 Hz … 2,000 Hz (according to EN 60068-2-6) |
| Max. angular acceleration: | 500,000 rad/s² |
| Bearing lifetime: | 3.0 x 10^9 revolutions |
| Error limits: | ± 0.5 ° (at room temperature) |
| Permissible movement axial static/dynamic: | ± 0.5 mm, ± 0.2 mm |
| Housing material: | Aluminum |
| Operating voltage range: | 10 V … 32 V |
| Storage temperature range: | -40 °C … +100 °C |
| Bus termination: | DIP switch |
| Data protocol: | PROFIBUS DP V0, PROFIBUS DP V1 + V2 |
| Start up torque: | 1 Ncm (+20 °C) |
| Max. number of revolutions: | 8,192, programmable |
| Permissible movement radial static/dynamic: | ± 0.3 mm, ± 0.1 mm |
| Repeat accuracy: | ± 0.25 ° (at room temperature) |
| Data transmission rate (baud rate): | ≤ 12 MBaud |
| Reverse polarity protection: | 1 |
| Resolution power: | 8,192 x 8,192 |
| Flange material: | Aluminum |
| Shaft diameter: | 12 mm |
