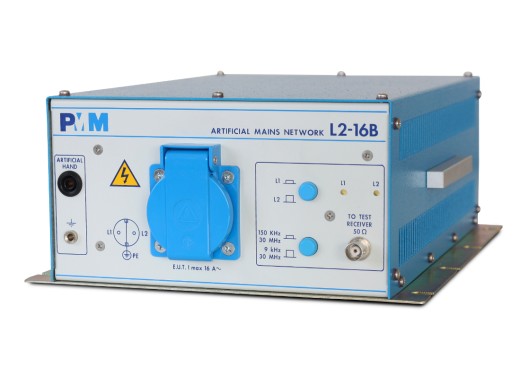

The Narda PMM L2-16B is a LISN (Line Impedance Stabilization Network) which is capable of generating a maximum output current of 16A. This LISN can be used to measure the conducted noise on the power line of single phase AC and DC powered devices. The L2-16B is designed to perform EMC pre-compliance testing in the frequency range of 9 kHz to 30 MHz. It is also possible to measure more accurately by adjusting the frequency range to 150 kHz to 30 MHz.
The L2-16B has an Artificial hand circuit and has local and remote control via PMM EMI receivers. The LISN should be connected between the EUT (Equipment Under Test) and the power source to accurately measure conducted noise without interference from the power source. The conducted noise can be measured with respect to the Neutral-line and the Phase-line. The L2-16B complies with EMC standards CISPR 16-1-2, VDE 0876 and FCC part 15. For more information, please refer to the datasheet at the bottom of the page.
If you are looking for a LISN to test 3-phase 32A devices, please look at the Narda PMM L3-32 LISN.
Specifications Frequency range 9 kHz — 30 MHz Max. voltage 250 VAC / 350 VDC Max. current 16 A Impedance 50 // (5 + 50 H) EMC-standards CISPR 16-1-2, VDE 0876, FCC part 15 Interfaces BNC, 16A SCHUKO connector Dimensions 230 x 105 x 285 mm Weight 5.5 kg Accessories
The Narda PMM L2-16B is supplied including:
- RF cable
- LISN remote control cable
- User manual
- Calibration certificate
- Power cord
