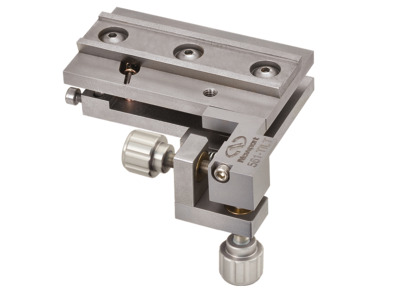

The M-561-TILT Metric Tilt Platform provides two-axis (yz) angular alignment of the fiber with minimal translation. The tilt platform mounts on top of an XYZ stage for five degrees of freedom. Fiber and device holders mount to a rail on top of the tip/tilt platform. The M-561-TILT stage utilizes precision 100 TPI adjustment screws and is a right-hand configuration.
Технические характеристики
- Stage Type Right-Handed
- Axes of Travel YZ
- Angular Range ±5°
- Sensitivity 5 arc sec
- Thread Type Metric
- Load Capacity 22 N
- Material Stainless Steel
- Optical Axis Height 79.4 mm
