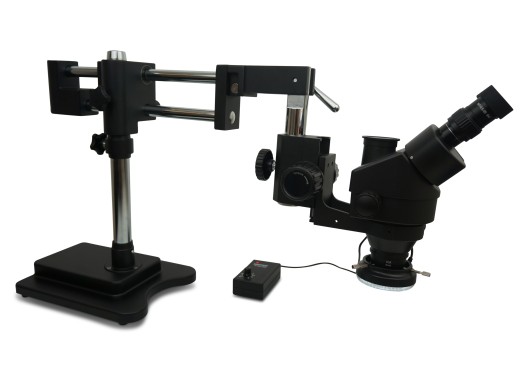

The SM-4TP black stereo microscope provides precise and clear images. A stereo microscope provides an in-depth image, making it possible to solder SMD components for example. This set consists of the black SM-4TP stereomicroscope, a 60 LED ring lighting attachment and a Barlow 0.5x lens.
Trinocular and simul-focal
The SM-4TP is trinocular, which means that there is a third port available to connect a camera with the help of the C-mount adapter. The SM-4TP is simul-focal, so the camera can be used simultaneously with the two eyepieces.
7x to 45x magnification
The SM-4TP microscope offers a magnification from 7x to 45x at a maximum working height of 100mm. For use with electronics it is best to use the included barlow lens 0.5x. This halves the magnification of the microscope and doubles the working distance (the distance between the lens and the working platform).
Double arm
The microscope has a solid base with a sound, dual arm that can be positioned freely. You can install it quickly on top of, for example, a PCB or the phone you want to repair. The dual arm can easily be pulled towards you and pushed away, as opposed to a single arm.
Model overview Model SM-3T SM-3TP SM-4T SM-4TP SM-4TP Black ZM-4T Arm Single Single Dual Dual Dual Dual Magnification 7x — 45x 7x — 45x 7x — 45x 7x — 45x 7x — 45x 6.7x — 45x Max. range 20 mm 20 mm 20 mm 20 mm 20 mm 22 mm Simul-focal No Yes No Yes Yes Yes Included accessories — — — — 60 LED ring lighting,
Barlow lens 0.5x — Price 342.15 €342.15 Excl. VAT 400.83 €400.83 Excl. VAT 400.83 €400.83 Excl. VAT 463.64 €463.64 Excl. VAT 536.36 €536.36 Excl. VAT 657.02 €657.02 Excl. VAT Specifications of the microscope TypeSM-4T Dioptre correction+/- 5dp Pupil spaceAdjustable (55-75 mm) Shipping weight~ 25kg SKUSZM7045T-STL2 Optional accessories LED ring lighting Without illumination, it can get very dark under a microscope. So don’t forget to order an improved 144 dimmable LED ring lighting. Led-ring 49.59 €49.59 Excl. VAT Info Add to Cart Barlow lens 2x A barlow lens is mounted at the bottom of the microscope’s lens. This lens doubles the microscope’s magnification and decreases the working distance by half (the distance between the lens and the working platform). Barlow lens 0.5x 32.23 €32.23 Excl. VAT Info Add to Cart C-mount adapter 0.35x A 0.35x C-mount adapter enables you to connect a camera to the microscope. C-mount adapter 0.35x 48.76 €48.76 Excl. VAT Info Add to Cart 2K camera A camera with HDMI output and storage capabilities with 2K resolution. If one would need a camera with a higher resolution, we would recommend the 4K camera. 2K camera 205.79 €205.79 Excl. VAT Info Add to Cart Premium rubber eyepieces Rubber eyepieces provide more comfort and reduces the incidence of light. (already included as standard) Premium rubber eyepieces 6.61 €6.61 Excl. VAT Info Add to Cart Specifications of the microscope TypeSM-4TP Max. range20 mm Dioptre correction+/- 5dp Pupil spaceAdjustable (55-75 mm) Included accessories60 LED ring lighting, Barlow lens 0.5x Shipping weight~ 25kg SKUSZM7045-BLACK
The microscope (tripod with arm, focus rack, eyepieces and lens) comes with premium rubber eyepieces, protectors, a dust cover, an LED-lighting ring, and a Barlow lens 0.5x.
The following article in the knowledge centre explains the principles of the microscope for electronics inspection: The microscope: an introduction
