The Mitutoyo Inch Rectangular Gage Block Sets offer exceptional precision and stability for calibration and manufacturing traceability of standard-sized pieces. Gage block sets are available in different grades, sizes and steps, offering exceptional precision and stability for calibration and manufacturing traceability. The Mitutoyo innovative lapping technique makes our gage blocks some of the most accurate and trusted instruments in the world, featuring exceptional flatness and ideal surface roughness. Our steel gage blocks are constructed of high-carbon, high-chrome steel and heated treated to resist warping and other deformations.
- Available in steel block sets only
- Specific, repeated heat treatment of steel blocks reduce deterioration change over time
- Advanced lapping techniques achieve the best flatness, surface roughness needed for gage blocks
- Black characters on gage blocks are inscribed by laser and clearly visible
- Provided with Inspection Certificate
- Supplied in a solid wooden case
| Order No.: | Product Image: | Number of blocks per set: | Grade: | Size: | Min Length: | Max Length: | Step: | Qty: | |
|---|
| 516-551-56 | — | 28 | K | 0.02005 | .02005″ | .09″ | — | 1 |
| 516-917-26 | — | 28 | 00 | .0201 — .0209 | .02005″ | .09″ | 0.0001 | 9 |
| 516-918-26 | — | 28 | 0 | .021 — .029 | .02005″ | .09″ | 0.001 | 9 |
| 516-919-26 | — | 28 | AS-1 | .01 — .09 | .02005″ | .09″ | 0.01 | 9 |
| 516-920-26 | — | 28 | AS-2 | — | .02005″ | .09″ | — | — |

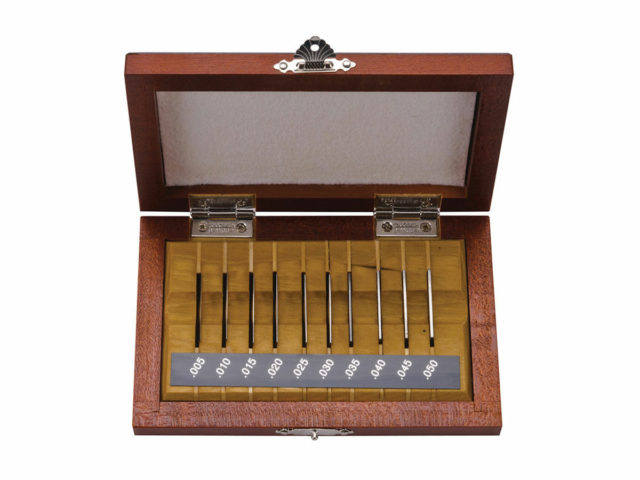

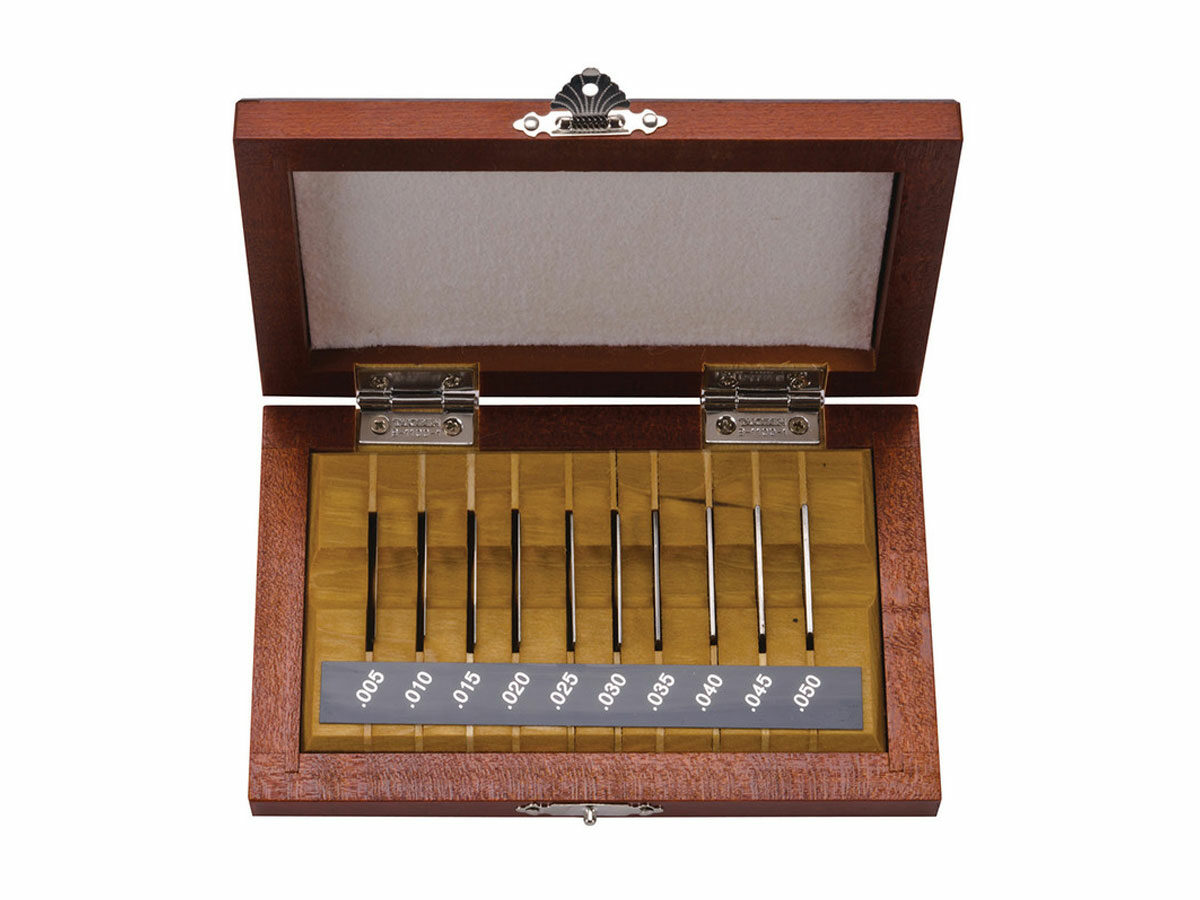

| 516-926-26 | — | 10 | 0 | .005 — .050 | .005″ | .05″ | 0.005 | 10 |
| 516-927-26 | — | 10 | AS-1 | — | .005″ | .05″ | — | — |
| 516-551-56 |
| 516-917-26 |
| 516-918-26 |
| 516-919-26 |
| 516-920-26 |
| 516-926-26 |
| 516-927-26 |
Технические характеристики
| Units: | Inch |
|---|
| Material: | Steel |
|---|
| Shape: | Rectangular |
|---|
| Provided with Inspection Certificate: | Yes |
|---|
