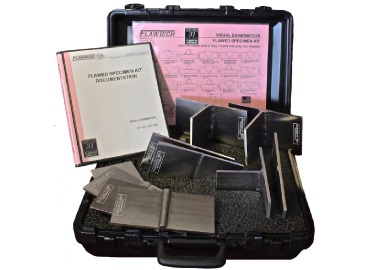

Product Information
Kit Includes the following flaws:
#10 Toe Crack SV
#11 Toe Crack Fillet
#12 Root Crack in SV
#14 Centerline Crack SV (surface breaking)
#16 Circumferential Crack SV (flush crown)
#17 Transverse Crack in SV (flush crown)
#18 Base Metal Crack SV (top HAZ area)
#19 Base Metal Crack SV (bottom HAZ area)
#20 Crater Crack SV (surface stop-start area)
#32 Porosity SV (surface breaking)
#33 Porosity fillet (surface breaking)
#51 Lamination Weld Prep
#53 Lack of Fusion SV (surface breaking at crown)
#54 Lack of Fusion SV (surface breaking at root)
#55 Lack of Fusion SV (surface breaking at root)
#80 Overlap Fillet
- Material: Carbon Steel
- Kit Contains: 10 Specimens
- (8) Plates @ 0.25T
- (2) Tee @ 0.25T
- Flaws: 2 per specimen, 20 total
- Doc Pack Includes C of C, CAD Drawings & Test Sheets
- Carrying Case: 1 @ 6 x 16 x 20
- Weight: ~35LBS
