| VNA time domain |
| Remote control capability |
| 4 GHz RF vector network analyzer, transmission/reflection |
| Transmission measurement |
| QuickCal |
| VNA transmission/reflection |
| VNA full 2-port S-parameters |
| TDR CABLE MEASUREMENTS |
| Spectrum analyzer |
| 6 GHz spectrum analyzer (requires Option 106) |
| Spectrum analyzer |
| Preampliier for spectrum analyzer (requires Option 230 or 231) |
| Interference analyzer and spectrogram |
| Spectrum analyzer time gating |
| External USB power sensor support |
| Network analysis capability |
| Cable and antenna analyzer |
| GPS receiver |
| Vector voltmeter |
| DC bias variable-voltage source |
| Built-in power meter |
| REAL-TIME SPECTRUM ANALYZER (RTSA) |
Additional Features:
Cable and Antenna Analyzer (CAT), Vector Network Analyzer (VNA)
- 30 kHz to 26.5 GHz
- Dynamic range: 100 dB
- CAT: Distance-to-fault, return loss, cable loss
- VNA: S11, S21, S22, S12, magnitude and phase
Spectrum Analyzer
- 5 kHz to 26.5 GHz
- ± 0.6 dB amplitude accuracy, full band, over full temperature range of -10 to +55°C (14 to 131°F)
- Spur-free dynamic range: ≥ 105 dB
- Full-band tracking generator

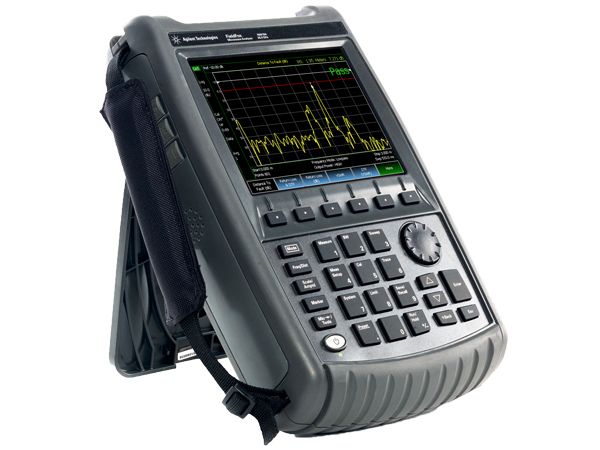

The Agilent N9918A Field Fox RF Analyzer is the world»s most integrated handheld instrument for wireless network installation and maintenance. It combines cable/antenna analysis, spectrum analysis, power meter measurements, vector network analysis, and a vector voltmeter into one rugged, compact, lightweight and weather-resistant package.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| Frequency | 26.5 GHz |
