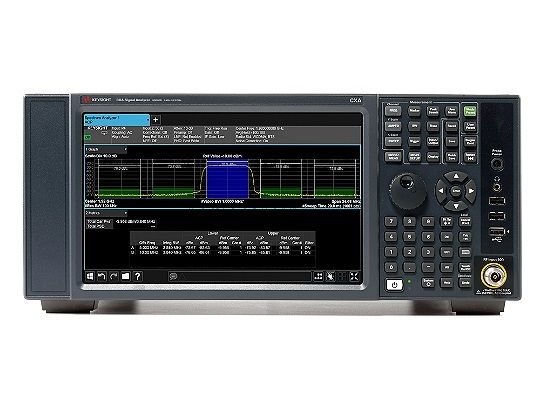

N9000B Анализатор спектра Agilent Keysight HP

N9000B — это анализатор спектра CXA серии X с частотой 26,5 ГГц от Agilent Keysight HP.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

Features

Master the essentials in signal characterization with the leading low-cost tool in signal analysis
Perform cost-effective stimulus response measurements with the optional built-in tracking generator
Add crucial functionality with X-Series measurement applications
Enhance theory with practical skills when used with a training kit in your RF & microwave education lab

Specifications

Dual core 64-bit performance processor, 8 GB RAM with removable SD card
±0.5 dB absolute amplitude accuracy
Enhanced phase noise
Up to +17 dBm third order intercept (TOI)
DANL @2 GHz, No Preamplifier -147 dBc/Hz
-163 dBm at 1 GHz, -147 dBm at 26.5 GHz displayed average noise level (DANL) with preamplifier
Wideband IF output, USB 3.0, 100Base-T LAN, GPIB
Programming language compatibility with ESA and other X-Series
Basic EMI precompliance measurement capability available
Standards-based PowerSuite: channel power, OBW, ACP, CCDF, SEM

The N9000B is a 9 kHz to 26.5 GHz, depending on options, spectrum analyzer from Agilent Keysight HP.

Технические характеристики
