| LO IN/OUT FOR PHASE COHERENCY |
| Expanded License Key Upgradability |
| High Output Power |
| Differential I/Q outputs |
| Waveform license 50-pack1 |
| 9 kHz to 3 GHz Frequency Range |
| 9 kHz to 6 GHz Frequency Range |
| ARB Baseband Generator (60 MHz RF bandwidth, 32 MSa) |
| UPGRADE BASEBAND GENERATOR FROM 60 TO 120 MHZ RF BANDWIDTH |
| UPGRADE BASEBAND GENERATOR WITH REAL-TIME CAPABILITY |
| Amplitude modulation |
| Enhanced dynamic range |
| On/off ratio >, 80 dB, typical |
Additional Features:
- 9 kHz to 1, 3 or 6 GHz
- +21 dBm specified power to 3 GHz with electronic attenuator
- <, 900-µs simultaneous switching of frequency and power
- <,0.1 dB level repeatability
- AM, FM, ØM, and narrow pulse
- Pulse train generator
- 10 MHz multifunction generator and LF out
- Digital step and list sweep modes
- 1000BaseT LAN, LXI, USB 2.0, and GPIB
- SCPI, IVI-COM, MATLAB drivers
- Backward compatible with all ESG, MXG, PSG, and 8648x signal generators
- Agilent USB power sensor compatible with embedded display and SCPI control
- Maximize yield with outstanding hardware performance
- Confidently test components with excellent level accuracy and repeatability
- Compensate for test system losses with industry-leading output power
- Maximize throughput with fast switching speed
- Shrink your test stand with two rack-unit height
- Get the performance and capabilities you need today and easily upgrade later
- Maximize resources with low cost of ownership
- Increase uptime with high mean time between failures (MTBF) based on first-generation MXG track record
- Minimize downtime and expenses with self-maintenance strategy and low-cost repairs

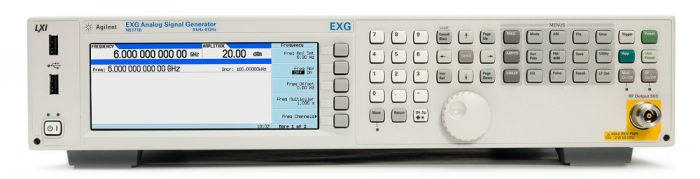

To help you achieve faster throughput and greater uptime, the Agilent N5171B EXG is optimized for manufacturing test with the signals you»ll need for basic parametric testing of components and calibration of receivers.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| Frequency | 3 GHz |
