Features:
- 3.0 GHz, 50 Ω
- Ideal for Wireless Communication Test
- Insertion Loss <,1.7 dB at 3.0 GHz

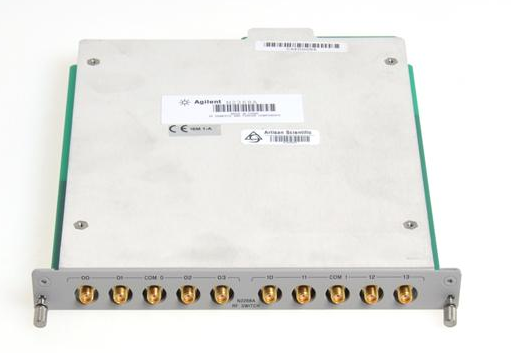

The N2268A multiplexer module has two 1×4 independent multi-plexers with SMA connectors, delivering high performance, very low insertion loss, high isolation, and excellent VSWR performance. This high-density RF multiplexer module is an economical RF signal switching solution. Its 3.0 GHz bandwidth guarantees signals will not be degraded when switched from source to destination. Each group of four channels is isolated from the other and from the chassis to prevent ground loops. The widebandwidth performance enables quality dynamic-range RF signal measurements using oscilloscopes, spectrum analyzers, network analyzers, and GSM/CDMA test sets. Typical test applications include switching signals of Bluetooth transceivers and L1/L2 GPS receivers, 1.8/1.9 GHz wireless communication devices (such as GSM, CDMA, 3G, DCS1800, and PCS1900 base stations), and mobile phones. It can be also used to route satellite signals.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
