| Rear panel sensor and power reference connectors (dual channel) |
Additional Features:
- Frequency range: 9 kHz to 110 GHz, sensor dependent
- LXI-C Compliance
- Average triggering for average power measurement
- Versatile connectivity with USB, LAN and GPIB standard
- High Speed Complementary Cumulative Distribution Function (CCDF) statistical analysis
- Compatible with the industry standard 8480 and E-series sensors which provide a wide dynamic range from -70 to +44 dBm, and a frequency coverage from 9 kHz to 110 GHz.
- Compatibility with E932x power sensors
- Difference and ratio math functions : (A-B, B-A, A/B and B/A)
- 2-year calibration cycle
- 30 MHz video bandwidth
- Single shot real time capture at 100 Msample/s per second
- Key Measurements: — peak, average, peak-to-average ratio, rise time, fall time and pulse width
- 22 Predefine formats: WiMAX, DME, HSDPA, etc.
- One screen view for pulse measurement analysis: Auto Scale, Auto Gate, Rise/Fall Time, Duty Cycle, etc.
- Internal Zeroing and Calibration while connecting to the DUT

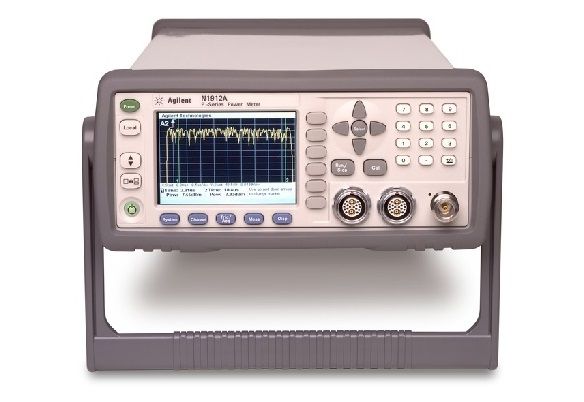

The Agilent N1912A dual channel P-Series wideband power sensors provide accurate and repeatable power measurements for R&D and manufacturing engineers, in markets including aerospace and defense (radar), wireless communications and wireless 802.11a/b/g networking. Measurements provided by this meter/sensor combination include peak power, average power, peak-to-average ratio, rise time, fall time, maximum power, minimum power and the statistical data of wideband signals (up to 30 MHz video bandwidth) with 100 M samples per second continuous sampling. Backwards compatibility with all Agilent 8480 power sensors and E-Series power sensors gives users additional choices for conventional average power measurements, over a wide dynamic range and frequency coverage from 9 kHz to 110 GHz.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
