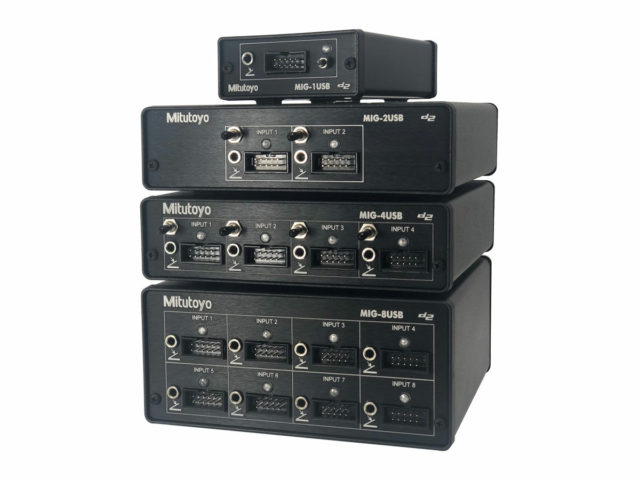

The Mitutoyo USB Multiplexer is a device that connects multiple gages with SPC Output at an inspection station directly to a PC via a USB cable. The measurement gages connect to the Multiplexer with SPC cables, and the Multiplexer features switches on the inputs to select which gage sends measurement data to the computer. This saves a lot of time switching out gage SPC cables connected to the PC.
The benefits of a Digimatic Multiplexer also include:
- Ability to transfer data from all of the gages to a PC and into any software such as Excel™ or MeasurLink®
- Useful in multi-gage inspection stations as well as dedicated fixtures that use multiple Digimatic tools
- Reduces the number of connections required to the PC
- Supports keyboard Emulation (HID) or Virtual COM Port (VCP) and RS232 connections
- Multiplexer also supports Max, Min and TIR collection modes
| Order No.: | Product Image: | Model: | Number of Inputs: | 10-pin Digimatic Input: | Serial RS232 Input: | Pass-Thru Port Input: | USB Output: | RS232 Output: | Data Send Button: | Timed Data Send: | Max/Min/TIR: | Continuous Data Send: | Polling from PC: | Column/Row Mapping: | Power Supply: | Supplies 5v: | Includes USB Cable: | Includes RS-232C Cable: | Includes AC adapter: | Requires SPC Cables: | |
|---|
| 64AAB637 | — | MIG1-USB | 1 | Yes | None | None | HID/VCP | None | Push | No | Yes | Yes | Yes | Yes | from USB port | No | Yes | No | No | Yes |
| 64AAB638 | — | MIG2-USB | 2 | Yes | Yes | Yes | HID/VCP | RS232 DB9F | Toggle | Yes | Yes | Yes | Yes | Yes | Power Adapter | Yes | Yes | Yes | Yes | Yes |
| 64AAB639 | — | MIG4-USB | 4 | Yes | Yes | Yes | HID/VCP | RS232 DB9F | Toggle | Yes | Yes | Yes | Yes | Yes | Power Adapter | Yes | Yes | Yes | Yes | Yes |
| 64AAB640 | — | MIG8-USB | 8 | Yes | Yes | Yes | HID/VCP | RS232 DB9F | None | Yes | Yes | Yes | Yes | Yes | Power Adapter | Yes | Yes | Yes | Yes | Yes |
| 64AAB637 |
| 64AAB638 |
| 64AAB639 |
| 64AAB640 |
