Description
Includes computer loaded w/ software

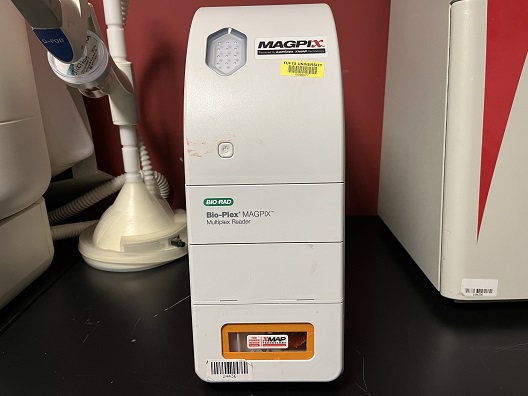

MAGPIX is the simplest, most affordable, and most compact of Luminex»s xMAP instruments. This compact multiplexing unit performs up to 50 different tests in a single reaction volume and reads a 96-well-plate in just 60 minutes. MAGPIX features self-cleaning routines and magnetic bead compatibility (with MagPlex beads), making the instrument easy to learn and easy to use.
Key MAGPIX Features
- Multiplexing: Up to 50 analytes per sample
- Sensitivity: Approximately 106 copies of DNA or single-digit picogram levels of protein
- Dynamic Range (Typical): ≥3.5 logs
- Read Time: 96-well plate in ≤ 60 min (up to 4,800 tests/hour)
- Daily Start-Up/Shut-Down: ≤ 15 min
- Foot Print: three ft linear bench space
Product Specifications:
- Multiplexing Capability: Up to 50 individual analytes
- Reagent Compatibility: MagPlex magnetic microspheres
- Dynamic Range (Typical): ≥ 3.5 logs
- Microplate Type: 96-well plate
- Reading Speed: 96 wells ≤ 60 mins
- Sample Temperature Control: 35° – 60° C (95° – 131° F)
- Sample Volume Uptake: 20 – 200 μL
- Probe Piercing: Yes
- Auto Adjust-Probe Height: Yes
- Daily Start-Up: ≤ 15 minutes
- Detection: CCD Imager
- Reporter Channel Excitation: 511 nm
- Classification Channel Excitation: 621 nm
- Power: 110 – 120 VAC or 200 – 240 VAC and 50 – 60 Hz
- Dimensions:5 cm W x 60 cm D x 43 cm H (6.5″ W x 23.5″ D x 17″ H)
- Weight:5 kg (38.5 lbs)
