Description

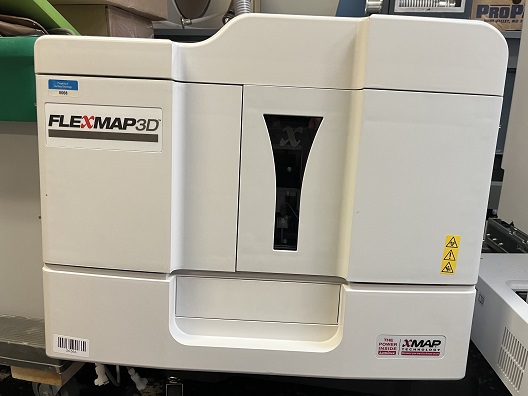

FLEXMAP 3D is Luminex»s most advanced and versatile multiplexing platform. Fast read time, compatibility with both 96- and 384-well plates, and ease of integration with front-end automation systems make the FLEXMAP 3D the platform of choice for high throughput applications. The platform uses both magnetic and non-magnetic microspheres and is capable of simultaneously measuring up to 500 genes or proteins from a small sample. Automated start-up, shut-down, and maintenance routines make the FLEXMAP 3D easy to use and maintain.
Specifications
Key Features:
- Multiplexing: Up to 500 analytes in a single sample
- Dynamic Range (Typical): ≥4.5 logs
- Read Time: 96-well plate in ~20 min (up to 144,000 tests/hour), 384-well plate in ~75 min (up to 153,600 tests/hour)
- Daily Start-Up/Shut-Down: ~30 min
Performance:
- Multiplexing Capability: Up to 500 individual analytes
- Dynamic Range: ≥4.5 logs
General:
- Physical Dimensions: 58.4 cm W x 63.5 cm D x 45.7 cm H (23 in W x 25.7 in D x 18 in H)
- Weight: No more than 91 Kg (200 lbs)
- Plate Heater Operating Range: 35 – 60°C (95 – 131°F)
- System Warm-Up: 30 minutes
Fluidics:
- Sheath Fluid Pressure: 8 – 13 psi
- Sample Injection Rate: 2 μL/second
- Sample Uptake Volume: 10 – 200 μL
Optics:
- Classification Laser Excitation: 638 nm
- Reporter Laser Excitation: 532 nm
- Reporter Detector: 565 nm – 585 nm
