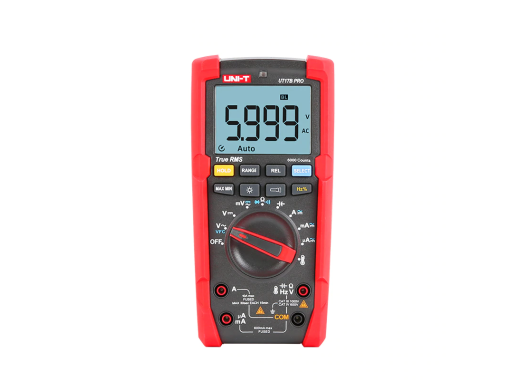

The UNI-T UT17B PRO is a quick, accurate and robust true-RMS multimeter. In addition to the normal functions, this meter also features a number of exceptional features such as VFC mode, full range mis-operation protection and capacitance ,frequency, duty cycle and temperature measurements. The VFC mode can be used to accurately measure signals with a variable frequency. Furthermore, due to the mis-operation protection, the meter is protected against damage when the knob is turned in the wrong position while performing a measurement. This multimeter also has a backlit LCD, flashlight and is drop resistant up to one meter which makes it useful in almost all environments. Models
The main differences between the UT15B Pro and UT17B Pro are that the ’17’ can measure temperature, frequency and duty cycle while the ’15’ can not.
Model UT15B PRO UT17B PRO Frequency No Yes Temperature meter No Yes Duty cycle No Yes Price 57.81 €57.81 Excl. VAT 69.38 €69.38 Excl. VAT
Specifications Measurement ranges Max. DC voltage1000 V Max. AC voltage1000 V VFC600 V Max. DC current 10 A Max. AC current10 A Max. Resistance60 M Max. Capacitance6000 uF Frequency10 Hz — 100 kHz Temperature -55 °C — 500 °C (±0.4%) True-RMS Yes Other functionsDiode-/continuity test, max/min/relative mode ,Duty cycle CategoryCAT III 1000V/CAT IV 600V Display6000 counts LCD Power supply2x 1.5V LR6 Weight484 g Dimensions195 x 95 x 58 mm Accessories
The UT17B PRO is delivered including:
- Test leads (Gold plated)
- Temperature Probe
