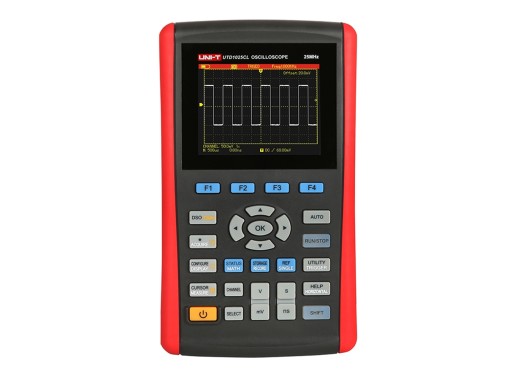

The UTD1025CL is a handheld multimeter/oscilloscope with a particularly high price/quality ratio The 1025 offers 25 MHz bandwidth with a sample rate of 200 MS/s. In addition, this model features a 4,000 count multimeter.
The multimeter offers True-RMS for voltage and current measurements and can also measure resistance and capacitance. This is then displayed on the 4000 count display.
In addition to the multimeter, the UTD1025CL offers a 25 MHz oscilloscope. This has a sample rate of 200 MS/s and can display the signal with a minimum of 5 mV/div on the screen. In combination with a 10x probe, up to 200 V/div can be measured. The scope features auto ranging, which allows a suitable range to be chosen for measurement without user input. This applies to both axes, both time and voltage are classified automatically.
The UTD1025CL is supplied with a USB cable, with which the scope/multimeter can be connected to a computer. With the included software, the multimeter can be used for multiple applications. For example, data can be logged, or Pass/Fail evaluation can be done. The USB connector is isolated to avoid dangerous situations.
With the 3600 mAh battery built in, it is possible to measure continuously for up to 7 hours. The battery can be recharged with the included adapter.
Specifications Measuring range and precision DC Voltage400 mV — 1000 V (±,1%+5) AC Voltage4 V — 750 V (±,1.2%+5) DC Current400 A — 10 A (±,1%+8) AC Current400 A — 10 A (±,1.5%+5) Resistance400 ~ 40 M (±,1.2%+5) Capacitance40 nF ~ 100 F (±,3%+5) Scope Bandwidth 25 MHz Scope Sample rate 200 MS/s Memory size 12 kpts Display count 4,000 (3¾, digit) Connectivity mini-USB Power supply 7.4 V 3600 mAh battery Screen 3.5′ 64k color TFT (320×240) Dimensions 199 x 118 x 49 mm Weight 900 g Accessories
The UTD1025CL comes with:
- DC adapter
- Test wires
- Probe (1x/10x)
- 10 A current divider
- Bag
- USB cable
